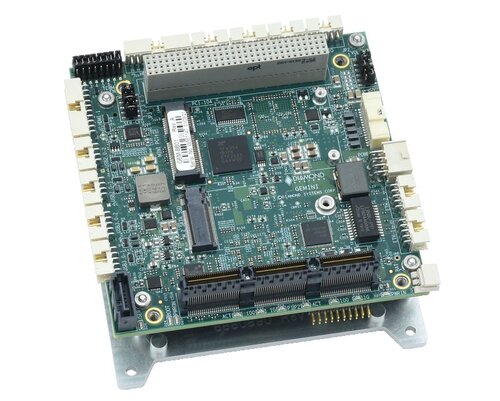

GEMINI is a COM Express Compact type 6 carrier board and SBC with PCI/104-Express and minicard I/O expansion.
GEMINI is a COM Express Compact type 6 carrier board and SBC with PCI/104-Express and minicard I/O expansion.
The Gemini COM Express Compact Type 6 carrier board and SBC delivers high performance for rugged embedded systems in a 102 x 102 mm footprint.
Complete SBC with Intel Core i7-8665UE processor
Up to 64 GB SODIMM memory
Accepts any COM Express Compact Type 6 module
PCIe/104 Type 1 expansion plus MiniCard socket
2 Ethernet, 6 USB and 4 RS-232/422/485 ports
Three displays up to 4096×2304, 8 DI and 8 DO
16–34 VDC, -40 to +85 °C, Linux and Windows
Additional information
| Temperature range | -40°C ~ 85°C |
|---|---|
| Supply voltage | 16–34 VDC |
| Processor | Intel Core i7-8665UE |
| Max memory | 64GB |
| Operating system | Linux, Windows |
| Power consumption | 10,2 W |
| Dimensions | 101,6 x 101,6 mm |
| Weight | 281 g |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| LAN ports | 2 |
| USB ports | 6 |
| COM ports | 4 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 3 |
| Display resolution | 4096×2304 |
| Digital inputs | 8 |
| Digital outputs | 8 |
| Expansion slots | PCI, PCIe |
| Memory | 16GB, 64GB |
| Sector | Factory Automation |
