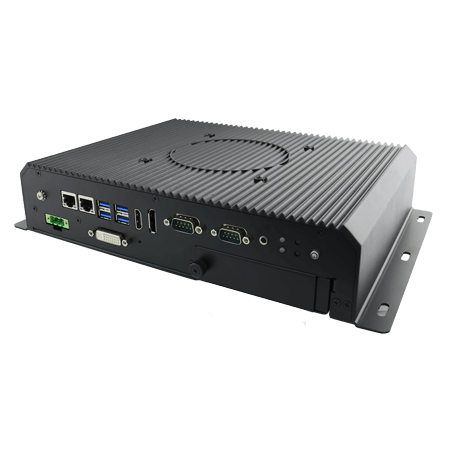

I330EAC-ITW Marine Computer
I330EAC-ITW Marine Computer
Winmate I330EAC-ITW is a fanless, DNV-certified marine computer for vessel systems that need Core i5 performance and many NMEA 0183 ports.
Intel Core i5-1135G7 (Tiger Lake) processor
4 GB DDR4L RAM, expandable to 32 GB
Removable 2.5″ SSD bay, DVI/HDMI/DisplayPort outputs
8 x NMEA 0183, 4 x DI and 4 x DO
1.5 kV power isolation, 9–36 VDC input
DNVGL-CG-0339 and IEC 60945 certified
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | Moderate |
|---|---|
| Storage | M.2 |
| Temperature range | -15°C ~ 55°C |
| Sector | Vehicle Solutions |
| Processor | Intel Core i5-1135G7 |
| Storage capacity | 128GB, 512GB |
| Operating system | Windows |
| Dimensions | 316,44 x 206,8 x 62,1 mm |
| Material | Aluminium |
| Cooling | Fanless |
| Supply voltage | 24 VDC, 9–36 VDC |
| Power consumption | 50 W |
| Shock | 15 G |
| Vibration | 0,7 G |
| USB ports | 4 |
| COM ports | 2 |
| Serial standard | RS-232, RS-422, RS-485 |
| LAN ports | 2 |
| Display outputs | 3 |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Max memory | 32GB |
| Weight | 3,9 kg |
| Approvals | DNV |
| Digital inputs | 4 |
| Digital outputs | 4 |
| Memory | 4GB |
