A172 Rugged Compact PC
A172 Rugged Compact PC

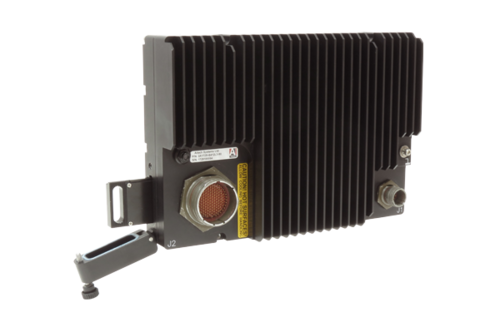

Aitech A172 is a rugged compact PC built on a COM Express Type 6 module for military and aerospace applications.
COM Express Type 6 module with CPU and RAM
Two mSATA and two mini PCIe sites
Gigabit Ethernet, USB 2.0, CANbus, serial and discrete I/O
DVI output plus composite video in and out
Windows, Linux and VxWorks support
Sealed to IP67 and cooled by natural convection
MIL-STD-704 and MIL-STD-1275 power, D38999 connectors
Our guides help you choose the right product.
Industrial PC – choosing a box PC, panel PC or rack PCIP ratings explained – IP65, IP67, IP68 and IP69KEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | High |
|---|---|
| Storage | mSATA, SSD |
| Temperature range | -40°C ~ 70°C |
| Sector | Defence |
| Processor | Intel Core i7-4650U, Intel Core i7-7600U, Intel Xeon E3-1505L v6 |
| Operating system | Linux, Windows |
| Supply voltage | 10–32 VDC |
| Power consumption | 45 W |
| IP Classification | IP67 |
| Approvals | MIL-STD-1275, MIL-STD-461, MIL-STD-810 |
| Fieldbus/Interface | CAN, Ethernet, RS-232, RS-485, USB |
| Serial standard | RS-232, RS-422, RS-485 |
| LAN ports | 2, 4 |
| USB ports | 4 |
| CAN interfaces | 2 |
| Display outputs | 1, 2 |
| Storage capacity | 128GB, 1TB |
| Flash type | MLC |
| Dimensions | 260 x 180 x 46 mm, 286 x 180 x 61 mm |
| Weight | 2,25 kg, 2,9 kg |
| Cooling | Fanless |
| Expansion slots | PCIe |
| Memory | 32GB, 8GB |
