I330EAC-ITW-6L Marine Computer
I330EAC-ITW-6L Marine Computer

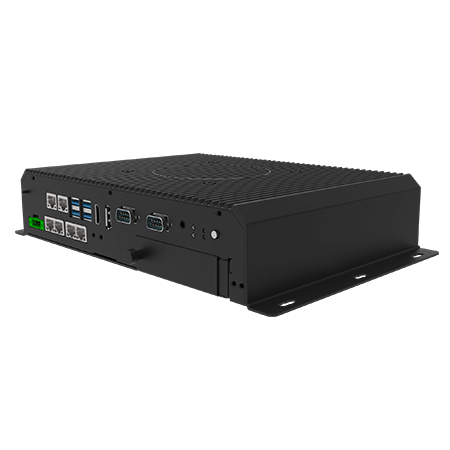

Winmate I330EAC-ITW-6L is a fanless marine box computer for ship systems that require DNV and IEC 60945 certified hardware.
Intel Core i5-1135G7 Tiger Lake processor
4 GB DDR4, expandable to 32 GB
Removable 2.5″ SSD bay for quick drive replacement
6 LAN, 4 USB and 2 COM ports with RS-232/422/485
1.5 kV isolated power protection, 9–36 VDC input
Fanless operation from -15 to 55 °C
Certified to DNVGL-CG-0339, IEC 60945 and IACS E10
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | Moderate |
|---|---|
| Storage | M.2 |
| Temperature range | -15°C ~ 55°C |
| Sector | Vehicle Solutions |
| Processor | Intel Core i5-1135G7 |
| Storage capacity | 128GB, 512GB |
| Operating system | Windows |
| Dimensions | 316,44 x 206,8 x 62,1 mm |
| Material | Aluminium |
| Cooling | Fanless |
| Supply voltage | 24 VDC, 9–36 VDC |
| Power consumption | 50 W |
| Shock | 15 G |
| Vibration | 0,7 G |
| USB ports | 4 |
| COM ports | 2 |
| Serial standard | RS-232, RS-422, RS-485 |
| LAN ports | 6 |
| Display outputs | 2 |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Max memory | 32GB |
| Weight | 3,9 kg |
| Approvals | DNV |
| Memory | 4GB |
