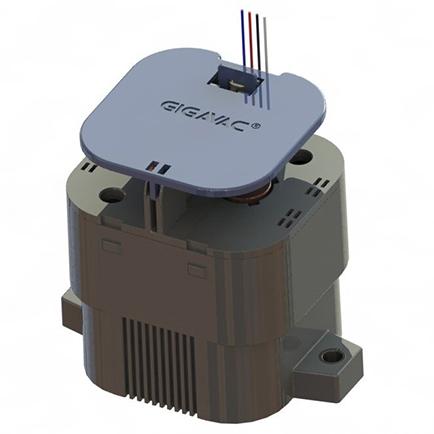

GTM500 Bi-directional Contactor 1500V/500A
GTM500 Bi-directional Contactor 1500V/500A
GTM500 is a bidirectional 1500 VDC power contactor from Sensata with glass-to-metal seals, for inverters, battery packs and DC combiner boxes.
500 A continuous current, max system voltage 1500 VDC
High-voltage load break in both current directions
Hermetic glass-to-metal sealing (GTMS)
Operating temperature -40 °C to +85 °C
Coil 12 or 24 VDC, side or upright mounting
Optional mechanically linked NO or NC auxiliary contacts
Reliable indication of the main contact closed position
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Auxiliary contact | Normally closed (NC), Normally open (NO), Optional |
|---|---|
| Coil Voltage | 12 VDC, 24 VDC |
| Contact config | Normally open (NO) |
| Continuous current | 500 A DC |
| Mechanical cycles | 300.000 |
| Mounting | Side, Up-Right |
| Sector | Vehicle Solutions |
| IP Classification | Hermetic |
| Temperature range | -40°C ~ 85°C |
| Max system voltage | 1500 VDC |
| Current direction | Bidirectional |
| Weight | 0,98 kg |
| Shock | 20 G |
| Vibration | 10 G |
| Response time | 40 ms |
