12-1500 Vdc

The GTM400 and GTM500 are the first products released as a part of Sensata’s new GTM contactor family which feature glass-to-metal seals (GTMS) – an industry first in contactor design. Glass-to-metal sealing is a technique used to create effective electrically-insulative hermetic seal technology. Leveraging over 50 years of expertise in GTMS, Sensata has engineered its…

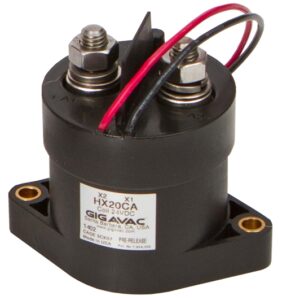

The HX200 is one of the smallest UL508 contactors and is manufactured entirely in accordance with RoHS. In addition, hermetic with Gigavac’s EPIC® ceramic technology and gas-filled, which means that it can safely be used in almost any tough environment, even under water and at teperatures from -55°C to 85°C Can be mounted in the…

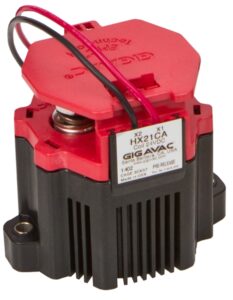

The HX21 is very compact and manufactured entirely according to RoHS. In addition, hermetic with Gigavacs EPIC® ceramic technology and gas-filled, which means that it can safely be used in almost every tough environment, even under water and at temperatures from -55°C to 85°C. Can be mounted at the desired angle as they are not…

• Robust High Voltage/High Power load break bi-directional DC contactor • Designed for high voltage Power conversion equipment OEM’s: Photovoltaic/Battery inverters, battery pack designers, DC combiner boxes and other HVDC industrial drive systems • Excellent isolation performance: 10kV withstand between open contacts for critical safety applications • Mechanically linked SPDT auxiliary contacts for critical safety…

Robust High Voltage/High Power load break bi-directional DC contactor. Designed for high voltage Power conversion equipment OEM’s: Photovoltaic/Battery inverters, battery pack designers, DC combiner boxes and other HVDC industrial drive systems. Excellent isolation performance: 10kv withstand between open contacts for critical safety applications. Mechanically linked SPDT auxiliary contacts for critical safety applications. Reliable indication of…

HXNC241 is a very compact and has a normally closed connector (NC). For currents up to +200 A at 1500 V dc according to UL508. Exceeds IP67 and IP69K sealing requirements and is also manufactured in accordance with RoHS. HXNC241 is lightweight and compact (approximately 73x81mm) and is manufactured with Gigavac’s EPIC® ceramic seals, which…

Hermetic seal with gas fill Auxiliary contacts – for main position feedback Integrated coil economizer to reduce coil holding power Meets RoHS 2011/65/EU IEC60947-5-1 compliant Contact Arrangement Form X, SPST NO Max Switching Voltage 1500VDC Continuous Current (200mm2 conductor) 600A Overload Current 1 minute 750A 30 seconds 800A Operating Temperature -40˚C to 85˚C Ingress Protection…

SPST Normally Open High Voltage Contactors. Hermetic Ceramic Seal with gas fill for superior carry and switching performance. Bi-Directional main contacts. Mechanically linked SPDT auxiliary contacts for accurate main position feedback. Meets RoHS 2011/65/EU. RoHS / REACH compliant. UL 60947-4 pending.
