R41A High Voltage relays 5kV Normally open (NO)
R41A High Voltage relays 5kV Normally open (NO)

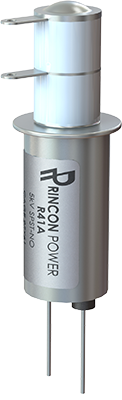

The Rincon Power R41A is a compact 5 kV normally open (NO) high voltage relay for antenna tuning units and high voltage test equipment.
5 kV AC/DC with 30 A continuous carry
Tungsten contacts for make/break load switching
RF-rated, compact design with reliable isolation
SPST-NO: isolates until the coil is energised
Hermetically sealed, IP67 and IP69K rated
Flange mounting, coil 12 VDC or 26.5 VDC
2,000,000 mechanical cycles, -55 to 125 °C
Additional information
| Coil Voltage | 12 VDC, 26,5 VDC |
|---|---|
| Max system voltage | 5 kVAC, 5 kVDC |
| Mechanical cycles | 2.000.000 |
| Sector | Factory Automation |
| Contact config | Normally open (NO), SPST |
| Temperature range | -55°C ~ 125°C |
| Mounting | Flange |
| IP Classification | Hermetic, IP67, IP69K |
| Continuous current | 30 A AC, 30 A DC |
| Shock | 50 G |
| Vibration | 10 G |
| Weight | 28 g |
| Response time | 10 ms |
