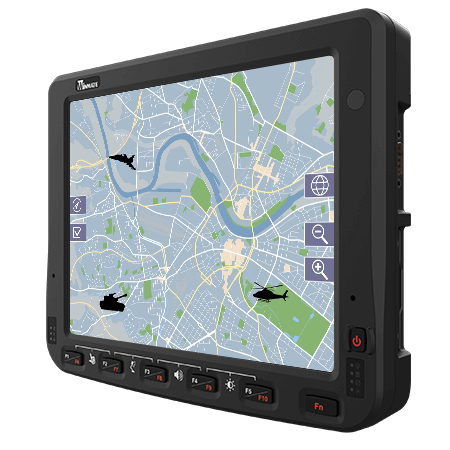

FM10E-VML / 10.4″ Intel Atom® x6425E Vehicle Mounted Computer Defence Panel PC
FM10E-VML / 10.4″ Intel Atom® x6425E Vehicle Mounted Computer Defence Panel PC
The FM10E-VML is a 10.4″ vehicle-mounted defence panel PC with Windows for military and defence vehicles.
Intel Atom x6413E/x6425E (Elkhart Lake), 4 GB RAM, max 8 GB
10.4″ 1024×768 PCAP touchscreen, 400 or 800 nits
IP65 sealed and fanless, -30 to 60 °C operation
Wide 10–60 V DC input with ignition control
I/O on defence-grade 38999 connectors, plus 4G
VESA mount, MIL-STD-810H and MIL-STD-461F compliant
Our guides help you choose the right product.
Industrial PC – choosing a box PC, panel PC or rack PCIP ratings explained – IP65, IP67, IP68 and IP69KPanel PCs – how to choose display, touch and IP ratingAdditional information
| Brightness | Extra bright |
|---|---|
| IP Classification | IP65 |
| Operating system | Windows |
| Screen size | 10'' |
| Touch | Capacitive |
| Temperature range | -30°C ~ 50°C |
| Sector | Defence |
| Display resolution | 1024×768 |
| Brightness (nits) | 400 nits, 800 nits |
| Processor | Intel Atom x6425E |
| Storage capacity | 128GB, 256GB |
| Dimensions | 268,1 x 214 x 51 mm |
| Weight | 2,4 kg |
| Mounting | VESA |
| Cooling | Fanless |
| Approvals | MIL-STD-461, MIL-STD-810, UL |
| USB ports | 2 |
| LAN ports | 1 |
| COM ports | 2 |
| Serial standard | RS-232, RS-422, RS-485 |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| Cellular | 4G |
| Max memory | 8GB |
| Storage | M.2 |
| Supply voltage | 9–36 VDC |
| Memory | 4GB |
