Star Delta timer, E3ZS20 12-240V AC/DC
Star Delta timer, E3ZS20 12-240V AC/DC

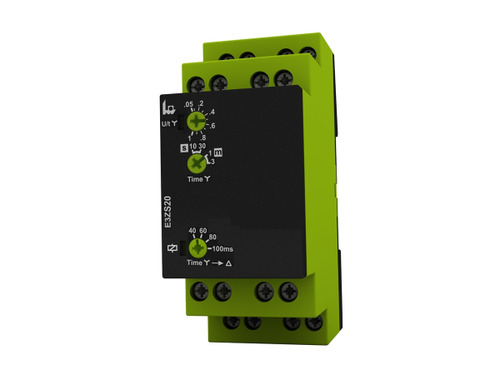

Tele Haase E3ZS20 is a star-delta timer relay for motor start-up control in distribution boards and control panels.
Star time selectable 10 s, 30 s, 1 or 3 min
Transition time 40, 60, 80 or 100 ms
Wide supply range 12 to 240 V AC/DC
Two changeover contacts rated 250 V AC, 8 A
35 mm installation housing for DIN rail
LEDs show supply and operating status
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| IP Classification | IP20, IP40 |
|---|---|
| Temperature range | -25°C ~ 55°C |
| Supply voltage | 12–240 VAC, 12–240 VDC |
| Sector | Factory Automation |
| Max current | 8 A AC |
| Mounting | DIN rail |
| Mechanical cycles | 20.000.000 |
| Contact config | Change over (CO) |
| Material | Plastic |
| Power consumption | 1,5 W |
| Voltage | 250 VAC |
| Dimensions | 35 x 87 x 60 mm |
