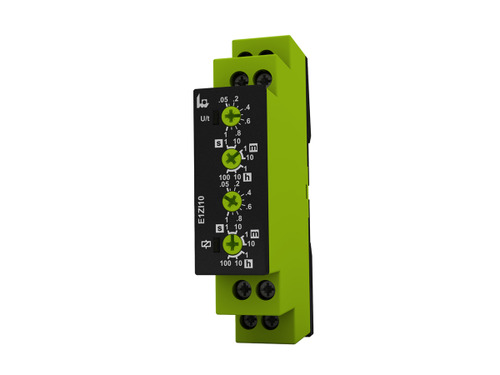

Asymmetric timer, E1ZI10 12-240VAC/DC
Asymmetric timer, E1ZI10 12-240VAC/DC
Tele Haase E1ZI10 is an asymmetric timer relay from the ENYA series for flashing cycles in distribution boards and control panels.
2 functions: flasher pause first and pulse first
t1 and t2 set separately, 50 ms to 100 hours
Wide supply range 12–240 V AC/DC
1 changeover contact rated 8 A at 250 V AC
Slim 17.5 mm installation housing for DIN rail
Timing accuracy ±1%, LED status indication
Our guides help you choose the right product.
Relay vs contactor vs SSR – which should you choose?Additional information
| Temperature range | -25°C ~ 55°C |
|---|---|
| Supply voltage | 12–240 VAC, 12–240 VDC |
| Sector | Factory Automation |
| IP Classification | IP20, IP40 |
| Max current | 8 A AC |
| Mounting | DIN rail |
| Mechanical cycles | 20.000.000 |
| Contact config | Change over (CO) |
| Rated voltage | 250 VAC |
| Material | Plastic |
| Weight | 72 g |
| Dimensions | 17,5 x 87 x 60 mm |
| Power consumption | 1,5 W |
| Accuracy | ±1% |
