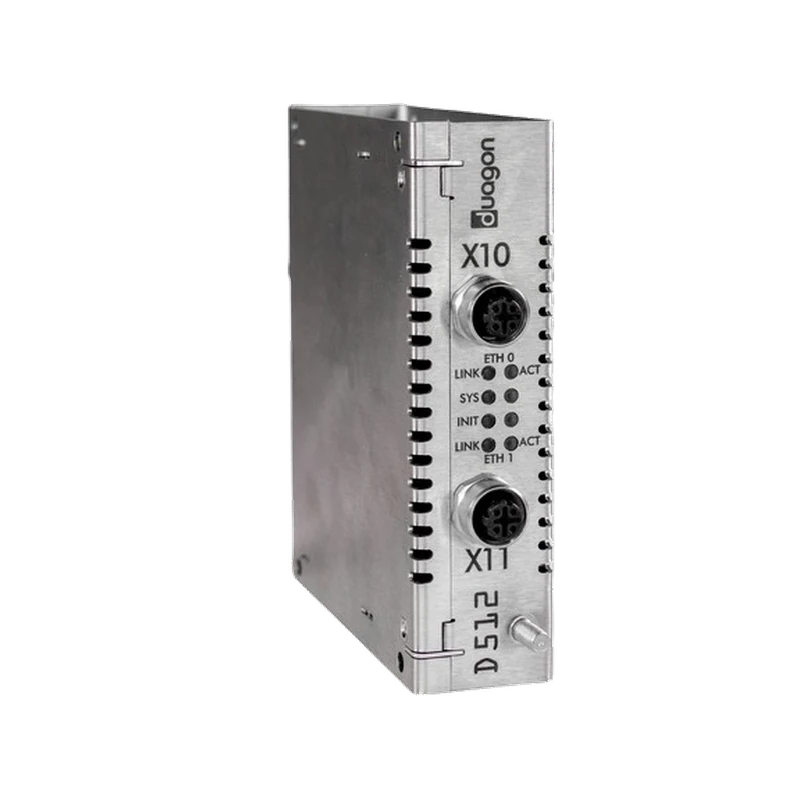

D512 Railway Ethernet Repeater
D512 Railway Ethernet Repeater
Compact 2-port Ethernet repeater for rolling stock that extends 10/100 Mbit links beyond 100 metres and bridges long gaps in redundant ring topologies.
Fully transparent to all Ethernet protocols, low latency
Full or half duplex with auto-negotiation and auto-crossover
Rated -40 °C to +70 °C, conformal coated, IP30
Two M12 D-coded 10/100BASE-TX ports
Battery supply 24–110 VDC or PoE powered
Optional bypass relays with status output, DIN rail or wall
EN 50155, EN 45545-2 and IEC 61375 compliant
Additional information
| Temperature range | -40°C ~ 70°C |
|---|---|
| Supply voltage | 24–36 VDC, 48–110 VDC |
| IP Classification | IP30 |
| Approvals | EN 45545-2, EN 50155 |
| Fieldbus/Interface | Ethernet |
| LAN ports | 2 |
| Mounting | DIN rail, Wall |
| Dimensions | 31,6 x 106 x 120 mm |
| Weight | 415 g |
| Power consumption | 3 W |
| Shock | 5,1 G |
| Sector | Infrastructure & Energy, Vehicle Solutions |
