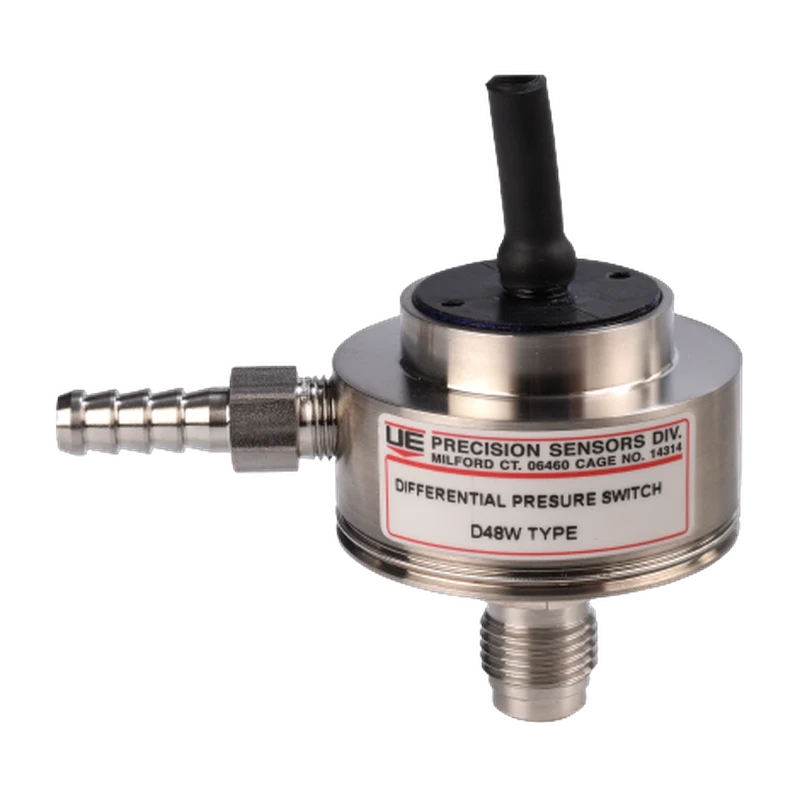

D48W high purity differential pressure switch
D48W high purity differential pressure switch
The Precision Sensors D48W is a welded differential pressure switch for load-lock chambers, gas delivery systems and mini environments in clean processes.
Factory set from 20 to 250 mm Hg differential
Port 1 in electropolished 316L, 10 Ra or better
Port 2 for dry air or inert gas
Snap-action Belleville spring, helium leak tested
SIL 3 capable, UL and CE marked
Gold or silver SPDT contacts, up to 5 A
Proof pressure 100 psid, 1 million cycles
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KPressure transducer vs transmitter vs switch – how to chooseAdditional information
| Sector | Factory Automation |
|---|---|
| Measured variable | Pressure |
| Measuring range | 20-250mmHg |
| Material | Stainless steel 316 |
| Contact config | SPDT |
| Switching output | NC, NO |
| Max current | 5 A AC, 5 A DC |
| Voltage | 250 VAC, 28 VDC |
| Safety level | SIL 3 |
| Mechanical cycles | 1.000.000 |
| Electrical connection | Free leads |
| Process connection | Barb fitting |
| Approvals | UL |
