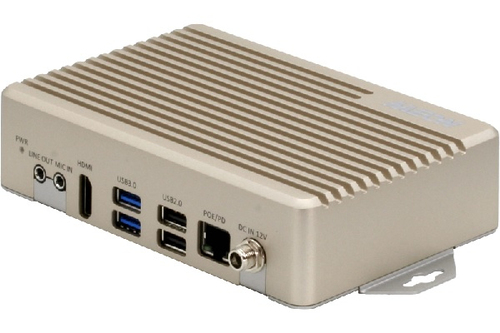

BOXER-8521AI Compact Fanless Embedded BOX PC
BOXER-8521AI Compact Fanless Embedded BOX PC
The BOXER-8521AI is a compact fanless AI box PC with Google Edge TPU for energy-efficient vision and sensor applications at the edge.
NXP i.MX 8M SoC with Google Edge TPU, up to 4 TOPS
1 GB LPDDR4x, 8 GB eMMC and microSD slot
GbE port with PoE PD, plus 12 VDC input as backup
HDMI, two USB 3.2 Gen 1 and two USB 2.0
RS-232/485 and 40-pin multi-I/O for sensors
Built-in Wi-Fi 5 2×2 MIMO and Bluetooth 4.1
Supports TensorFlow Lite, -5°C to 50°C operation
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | Moderate |
|---|---|
| Expansion slots | None |
| Storage | eMMC |
| Temperature range | -5°C ~ 50°C, Normal |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Processor | NXP i.MX 8M |
| Storage capacity | 8GB |
| Supply voltage | 12 VDC |
| Operating system | Linux |
| Mounting | Wall |
| Dimensions | 175,8 x 100 x 39 mm |
| Weight | 0,58 kg |
| Shock | 50 G |
| Vibration | 3,5 Grms |
| Fieldbus/Interface | Ethernet, RS-232, RS-485, USB |
| LAN ports | 1 |
| USB ports | 4 |
| COM ports | 1 |
| Serial standard | RS-232, RS-485 |
| Display outputs | 1 |
| Wi-Fi standard | Wi-Fi 5 |
| Cooling | Fanless |
| Memory | 1GB |
