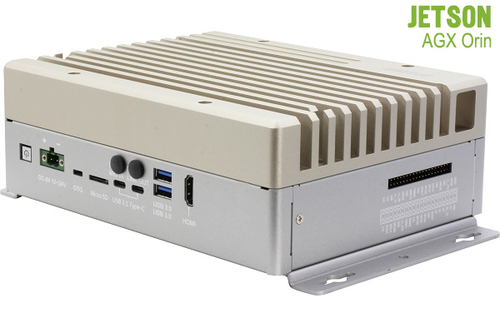

BOXER-8640AI Fanless Embedded AI System
BOXER-8640AI Fanless Embedded AI System
The BOXER-8640AI is a fanless AI box PC with NVIDIA Jetson AGX Orin for multi-stream video analytics with PoE cameras.
NVIDIA Jetson AGX Orin, up to 200 TOPS
32 GB LPDDR5 and 64 GB eMMC onboard
MicroSD, 2.5″ SATA bay and M.2 NVMe slot
Four PoE GbE ports, 60 W in total
HDMI, four USB 3.2 Gen 2, RS-232/422/485 and CANbus
40-pin header and M.2 E-Key for Wi-Fi/Bluetooth
12–24 VDC input, -20°C to 55°C operating range
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KIndustrial PC – choosing a box PC, panel PC or rack PCEdge computing and AI – how to choose an industrial computerAdditional information
| CPU performance | Moderate |
|---|---|
| Expansion slots | M.2 |
| Storage | eMMC, M.2, MicroSD, SSD |
| Temperature range | -20°C ~ 55°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables, Vehicle Solutions |
| Processor | NVIDIA Jetson AGX Orin |
| Storage capacity | 64GB |
| Storage interface | eMMC 5.1 |
| Supply voltage | 12–24 VDC |
| Operating system | Linux |
| Mounting | Wall |
| Dimensions | 210 x 164,2 x 74 mm |
| Weight | 2,9 kg |
| Shock | 50 G |
| Vibration | 3,5 Grms |
| Fieldbus/Interface | CAN, Ethernet, RS-232, RS-485, USB |
| LAN ports | 4 |
| PoE ports | 4 |
| PoE budget | 60 W |
| USB ports | 4 |
| COM ports | 1 |
| CAN interfaces | 1 |
| Serial standard | RS-232, RS-422, RS-485 |
| Display outputs | 1 |
| Form factor | 2.5'', M.2 2280 |
| Cooling | Fanless |
| Memory | 32GB |
