540 Pressure sensor
540 Pressure sensor

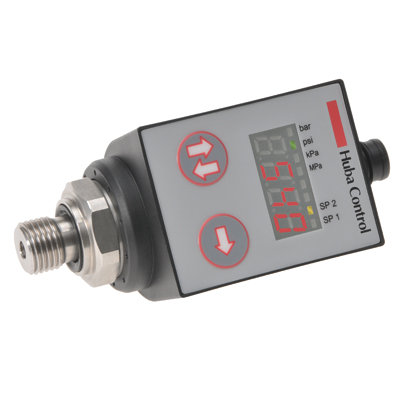

Huba Control 540 is a programmable pressure transmitter with LED display and switching outputs for industrial machines and plants.
Relative ranges up to 600 bar, response under 5 ms
4-digit LED display, easy setup with two buttons
Up to two programmable PNP or NPN switching points
Analog 4–20 mA or 0–10 V output, diagnostic function
Welded stainless steel cell with high overload safety
M12 connector, NSF/ANSI 61/372 and WRAS approvals
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KPressure transducer vs transmitter vs switch – how to chooseAdditional information
| IP Classification | IP65, IP67 |
|---|---|
| Pressure type | Relative pressure |
| Material | Plastic, Stainless steel |
| Measuring range | 0-600bar |
| Communication Interface | Analog 0-10V, Analog 4-20mA |
| Electrical connection | M12 connector |
| Process connection | Inside thread, Outside thread |
| Sector | Factory Automation |
| Switching output | NC, NO, NPN, PNP |
| Temperature range | -20°C ~ 80°C |
| Media temperature | -20°C ~ 80°C |
| Supply voltage | 17–33 VDC |
| Response time | 5 ms |
| Weight | 120 g |
| Accuracy | ±1% |
| Shock | 100 G |
| Vibration | 20 G |
| Approvals | UL |
| Measured variable | Pressure |
