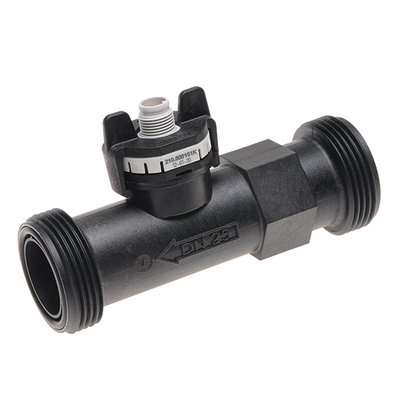

210 Flow sensor
210 Flow sensor
Huba Control 210 is a vortex flow sensor for heat pumps, heating circuits and drinking water systems with flexible outputs.
Measures 0.5–150 l/min in nominal widths DN6 to DN25
Accuracy under 1 % FS in the lower range
No moving parts, dirt-insensitive with low pressure loss
Output 0–10 V, 4–20 mA, pulse or frequency via M12
Optional PT1000 temperature measurement directly in the medium
KTW, W270, ACS, WRAS and UBA approvals, R290 Ready
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KAdditional information
| Measuring technology | Vortex |
|---|---|
| Material | Plastic |
| Measuring range | -40-125°C, 0,5..150l/min |
| Communication Interface | Analog 0-10V, Analog 4-20mA |
| Nominal diameter | DN10, DN15, DN20, DN25, DN6, DN8 |
| Electrical connection | M12 connector |
| Process connection | Pipe, Thread |
| Supply voltage | 24 VDC |
| Approvals | Drinking water |
| Sector | Factory Automation, Renewables |
| Temperature range | -15°C ~ 85°C |
| Response time | 5 ms |
| Weight | 100 g, 47 g |
| Measured variable | Flow, Temperature |
| IP Classification | IP65 |
