236 Flow sensor
236 Flow sensor

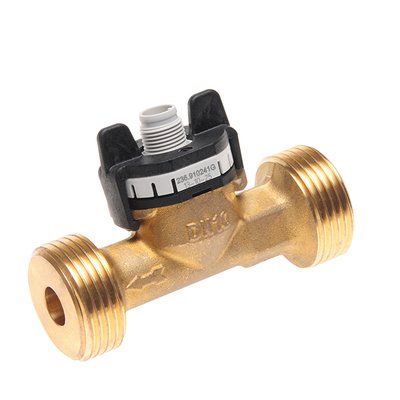

The type 236 is based on the type 210 but incorporates a brass housing. The Vortex Sensor type 236 has a rugged construction of brass connection. This flow sensor is available with a larger variety concerning power supply and outputs.You can choose between various versions as integrated temperature measurement. With no moving parts the flow sensor is not sensitive to debris, has marginal pressure loss and high accuracy.
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KAdditional information
| Measuring technology | Vortex |
|---|---|
| Material | Brass |
| Measuring range | -40-125°C, 0,9..240l/min |
| Communication Interface | Analog 0-10V, Analog 4-20mA |
| Nominal diameter | DN10, DN15, DN20, DN25 |
| Electrical connection | M12 connector |
| Process connection | Thread |
| Supply voltage | 24 VDC |
| Approvals | Drinking water |
| Sector | Factory Automation, Renewables |
| Temperature range | -15°C ~ 85°C |
| Response time | 5 ms |
| Weight | 160 g, 691 g |
| Measured variable | Flow, Temperature |
| IP Classification | IP65 |
