VIPA CPU 312SC is a CPU with built-in I / O and PG / OP communication via Ethernet port. I
VIPA CPU 312SC is a CPU with built-in I / O and PG / OP communication via Ethernet port. It has 16 digital inputs and 8 digital outputs. The VIPA CPU 312SC has 128KB of built-in work memory, expandable to 1024kB and can be programmed with Simatic Manager and TIA Portal. Front connectors are included…
VIPA CPU 313SC / DPM is a CPU with built-in I /O, Profibus master and PG / OP communicatio
VIPA CPU 313SC / DPM is a CPU with built-in I /O, Profibus master and PG / OP communication via Ethernet port. It has 16 digital inputs and 16 digital outputs. The VIPA CPU 313SC / DPM has built-in 256KB work memory, expandable to 1024kB and can be programmed with Simatic Manager and TIA Portal….
VIPA CPU 313SC is a CPU with built-in I / O and PG / OP communication via Ethernet port. I
VIPA CPU 313SC is a CPU with built-in I / O and PG / OP communication via Ethernet port. It has 24 digital inputs and 16 digital outputs. Analogously it has 4 inputs and 2 outputs and a Pt100 input. The VIPA CPU 313SC has built-in 256KB work memory that can be expanded to 1024kB…
VIPA CPU 314SB/DPM has built-in Profibus master and PG/OP communication via Ethernet port.
VIPA CPU 314SB/DPM has built-in Profibus master and PG/OP communication via Ethernet port. It has 256Kb RAM which can be expanded to 512Kb via MMC card. VIPA CPU 314SB/DPM can be programmed via TIA Portal or with STEP7.
VIPA CPU 314/SE has built-in PG/OP communication via Ethernet port. It has 256Kb RAM which
VIPA CPU 314/SE has built-in PG/OP communication via Ethernet port. It has 256Kb RAM which can be expanded to 1024Kb via MMC card. VIPA CPU 314SE can be programmed via TIA Portal or with STEP7 .
VIPA CPU 314ST is a CPU with built-in I / O, Profibusmaster and PG / OP communication via
VIPA CPU 314ST is a CPU with built-in I / O, Profibusmaster and PG / OP communication via Ethernet port. The VIPA CPU 314ST has 8 digital inputs and 8 digital outputs, 4 analogue inputs and 2 analogue outputs as well as a Pt100 input. In addition, it has a built-in 512Kb work memory, expandable…
VIPA CPU 314SC / DPM is a CPU with built-in I / O, Profibus master and PG / OP communicati
VIPA CPU 314SC / DPM is a CPU with built-in I / O, Profibus master and PG / OP communication via Ethernet port. It has 24 digital inputs, 16 digital outputs and 8 selectable digital inputs and outputs. In addition, it has 4 analogue inputs and 2 analogue outputs as well as a Pt100 input,…
The VIPA CPU 315SB has Profibus master and PG / OP communication via Ethernet port. It has
The VIPA CPU 315SB has Profibus master and PG / OP communication via Ethernet port. It has built-in 1MB work memory that can be expanded to 4MB. The VIPA CPU 315SB can be programmed with Simatic Manager and TIA Portal.
VIPA CPU315SN/NET is a fast CPU with both a Profibus master and a full-featured Ethernet c
VIPA CPU315SN/NET is a fast CPU with both a Profibus master and a full-featured Ethernet card (CP 343 cards) built-in, 1MB working memory which can be expanded to 2MB via MMC card. VIPA CPU315SN/NET can be programmed with TIA Portal or STEP7.
VIPA CPU 315PN is a SPEED7 CPU combined with Profibusmaster, Ethernet card (343 cards) and
VIPA CPU 315PN is a SPEED7 CPU combined with Profibusmaster, Ethernet card (343 cards) and Profinet controller, built-in 1MB work memory that can expand to 4MB. VIPA CPU 315PN is programmable with Simatic Manager and TIA Portal.
VIPA CPU 315PN ECO is a fast CPU in the ECO series that has Profinet controller and 512kB
VIPA CPU 315PN ECO is a fast CPU in the ECO series that has Profinet controller and 512kB work memory. It can be programmed with Simatic Manager and TIA Portal.
VIPA CPU 317SE is a very fast CPU with Profibusmaster, PG / OP communication via Ethernet
VIPA CPU 317SE is a very fast CPU with Profibusmaster, PG / OP communication via Ethernet port and VIPA’s patented SPEED Bus. SPEED-Bus is a unique backplane bus specially adapted for very fast I / Os. The VIPA CPU 317SE handles common I / O modules as well. Programmable with Simatic Manager and TIA Portal.
VIPA CPU 317SN is a CPU with a Profibusmaster and a full-featured Ethernet card (CP 343) b
VIPA CPU 317SN is a CPU with a Profibusmaster and a full-featured Ethernet card (CP 343) built-in. Programmable with Simatic Manager and TIA Portal. It also can handle very fast progress through the VIPA’s SPEED Bus. SPEED-Bus is a unique backplane bus specifically designed to handle very fast I / O. The CPU handles common…
VIPA CPU 317PN is a SPEED7 CPU combined with Profibusmaster, Ethernet card (343 cards) and
VIPA CPU 317PN is a SPEED7 CPU combined with Profibusmaster, Ethernet card (343 cards) and Profinet controller. Programmable with Simatic Manager and TIA Portal. It has 4MB work memory that can expand to 8MB. VIPA CPU 317PN also handles very fast I / Os via VIPA’s SPEED Bus.

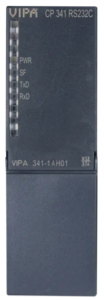

RS232 Isolated Function compatibility to Siemens CP 341 Parameterization via the Siemens p
RS232 Isolated Function compatibility to Siemens CP 341 Parameterization via the Siemens parameterization package Data transfer rate up to 76.8 Kbit/s Power supply via backplane bus
RS422/485 Isolated Function compatibility to Siemens CP 341 Parameterization via the Sieme
RS422/485 Isolated Function compatibility to Siemens CP 341 Parameterization via the Siemens parameterization package Data transfer rate up to 76,8 Kbit/s Power supply via backplane bus
2x RS422/485 Isolated SPEED-Bus Data transfer rate up to 115.2 Kbit/s Integrated diagnosti
2x RS422/485 Isolated SPEED-Bus Data transfer rate up to 115.2 Kbit/s Integrated diagnostic buffer
CANopen master SPEED-Bus 1 Mbit/s 125 CAN slaves connectable 40 Transmit PDOs, 40 Receive
CANopen master SPEED-Bus 1 Mbit/s 125 CAN slaves connectable 40 Transmit PDOs, 40 Receive PDOs 1 SDO (Server), 127 SDO (Client) Project engineering: VIPA WinCoCT

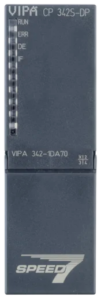

PROFIBUS DP master SPEED-Bus 12 Mbit/s RS485 124 DP slaves connectable Project engineering
PROFIBUS DP master SPEED-Bus 12 Mbit/s RS485 124 DP slaves connectable Project engineering: Siemens SIMATIC Manager Diagnostic facilities
Dual INTERBUS master SPEED-Bus 2x RS422 Diagnostic via LEDs Diagnostic device (2x RJ45) Du
Dual INTERBUS master SPEED-Bus 2x RS422 Diagnostic via LEDs Diagnostic device (2x RJ45) Dual Port Master Up to 512 slaves connectable
SPEED-Bus RJ45 16 connections via Siemens NetPro 64 connections via user program 32 PG/OP
SPEED-Bus RJ45 16 connections via Siemens NetPro 64 connections via user program 32 PG/OP connections

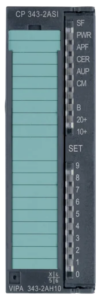

Up to 62 slaves connectable Corresponding to AS-i specification 3.0 (master profile M3) Su
Up to 62 slaves connectable Corresponding to AS-i specification 3.0 (master profile M3) Support of analog slaves concerning profile 7.3 resp. 7.4 Automatic address programming possible (address 0)
DC 24 V 12 Mbit/s Up to 29 peripheral modules (16 analog) 244 Byte input- und 244 Byte out
DC 24 V 12 Mbit/s Up to 29 peripheral modules (16 analog) 244 Byte input- und 244 Byte outputdata Integrated DC 24 V power supply Configuration via GSD-file of VIPA

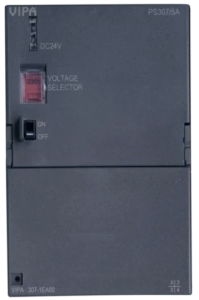

AC 120…230 V DC 24 V 5 A 60/50 Hz switchable
AC 120…230 V DC 24 V 5 A 60/50 Hz switchable

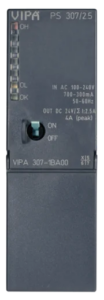

AC 100…240 V DC 24 V 2.5 A Without manual switch
AC 100…240 V DC 24 V 2.5 A Without manual switch
