Accessories
Accessories for solid state relays ensure correct mounting and cooling of the SSR in control cabinets and machines. SCN supplies celduc WF11, WF12, WF15, WF21 and WF31 heatsinks, DIN rail adaptors, mounting kits, thermal seals and the ESUC current monitoring module for SU and SUL relays. Good cooling matters, as the heat an SSR generates limits its load current. Our engineers help you choose the right heatsink, mounting and thermal interface for your application.
-
-
ESO010 Voltage Protection Module for DC SSR, 80 A
Voltage protection for DC SSRs, 0-80A, 0-130VDC
Voltage protection for DC SSRs, 0-80A, 0-130VDC
-
ESUC Current monitoring module for SU SUL
Current monitoring module for up to 5 heaters, 2–40 A
Current monitoring module for up to 5 heaters, 2–40 A
-
Mounting kits
Mounting kits for relays on heatsinks and DIN adaptors
Mounting kits for relays on heatsinks and DIN adaptors
-
Mounting, Heatsink & DIN adaptor option
Mounting kits, heatsinks and DIN adaptors for SSR
Mounting kits, heatsinks and DIN adaptors for SSR
-

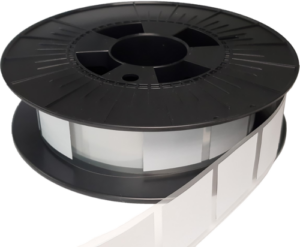

Thermal seals
Thermal grease, precut film and pads for relay heatsinks
Thermal grease, precut film and pads for relay heatsinks
-

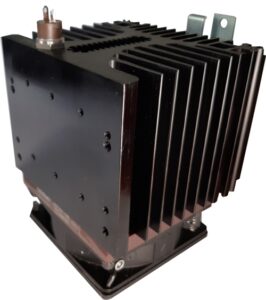

WF03 Heatsink
Fan-cooled heatsink 0.3 K/W, 110×120×145 mm
Fan-cooled heatsink 0.3 K/W, 110×120×145 mm
-
WF05 Heatsink
Heatsink 0.55 K/W, 110×100×200 mm, optional DIN adaptor
Heatsink 0.55 K/W, 110×100×200 mm, optional DIN adaptor
-
WF07 Heatsink
Heatsink 0.75 K/W, 110×100×100 mm, optional DIN adaptor
Heatsink 0.75 K/W, 110×100×100 mm, optional DIN adaptor
-
WF10 Heatsink
Heatsink 1.1 K/W, 89.8×81×98 mm, DIN rail or screw mount
Heatsink 1.1 K/W, 89.8×81×98 mm, DIN rail or screw mount
-
WF11 Heatsink
Heatsink 0.9 K/W, 110×100×90 mm, DIN rail or screw mount
Heatsink 0.9 K/W, 110×100×90 mm, DIN rail or screw mount
-
WF12 Heatsink
Heatsink 1.2 K/W, 110×40×100 mm, DIN rail or screw mount
Heatsink 1.2 K/W, 110×40×100 mm, DIN rail or screw mount
-
WF15 Heatsink
Heatsink 2.2 K/W, 45×73×80 mm, DIN rail or screw mount
Heatsink 2.2 K/W, 45×73×80 mm, DIN rail or screw mount
-

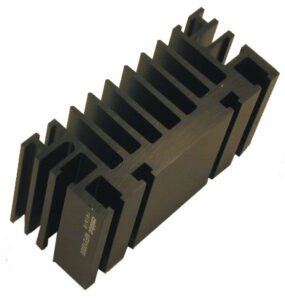

WF21 Heatsink
Heatsink 2.1 K/W, 96×41×55 mm, optional DIN adaptor
Heatsink 2.1 K/W, 96×41×55 mm, optional DIN adaptor
-
WF31 Heatsink
Heatsink 3 K/W, 22.5×73×80 mm, DIN rail or screw mount
Heatsink 3 K/W, 22.5×73×80 mm, DIN rail or screw mount
