Through hole slip rings
Through hole slip rings have an open centre bore through which shafts, hoses or cables can pass. SCN supplies through hole slip rings from JINPAT, mainly in the LPT series in many bore sizes, as well as the LPTS series. They are used in rotary tables, packaging machines, cranes, cable reels and wind turbines. Our engineers help you choose the right bore size, number of circuits and current rating for your application.
-
-
LPT000-0305-U2-HF01 slipring
Slip ring with 3 × 5 A, USB and HF, aluminium housing
Slip ring with 3 × 5 A, USB and HF, aluminium housing
-
LPT000-2015-30S slip ring
Slip ring Ø185 mm, 20 × 15 A, 30 signal circuits, 2 × HF
Slip ring Ø185 mm, 20 × 15 A, 30 signal circuits, 2 × HF
-
LPT000-2305-5902-E2 slipring
Ethernet slip ring, 100 Mbit, 59 × 2 A, 23 × 5 A, Ø99 mm
Ethernet slip ring, 100 Mbit, 59 × 2 A, 23 × 5 A, Ø99 mm
-
LPT012 Through bore slip ring
Through-bore slip ring Ø12.7 mm, 24 circuits, 2–10 A, IP54
Through-bore slip ring Ø12.7 mm, 24 circuits, 2–10 A, IP54
-
LPT012-0610 slipring
Through-bore slip ring Ø12.7 mm, 6 circuits, 10 A, IP54
Through-bore slip ring Ø12.7 mm, 6 circuits, 10 A, IP54
-
LPT012A-0602 Through bore slip ring
Through-bore slip ring Ø12.7 mm, 6 × 2 A, 380 V AC, IP54
Through-bore slip ring Ø12.7 mm, 6 × 2 A, 380 V AC, IP54
-
LPT012B-0602 Through bore slip ring
Through-bore slip ring Ø12.7 mm, 6 × 2 A, 380 V AC, IP54
Through-bore slip ring Ø12.7 mm, 6 × 2 A, 380 V AC, IP54
-
LPT025 Through bore slip ring
Through-bore slip ring Ø25.4 mm, 24 circuits, 1–15 A, IP54
Through-bore slip ring Ø25.4 mm, 24 circuits, 1–15 A, IP54
-
LPT038 Through bore slip ring
Through-bore slip ring Ø38.1 mm, 24 circuits, 1–15 A, IP54
Through-bore slip ring Ø38.1 mm, 24 circuits, 1–15 A, IP54
-

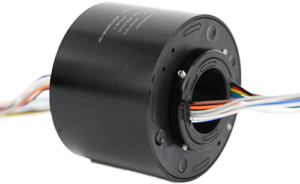

LPT050 Through bore slip ring
Through-bore slip ring Ø50 mm, 24 circuits, 1–15 A, IP54
Through-bore slip ring Ø50 mm, 24 circuits, 1–15 A, IP54
-

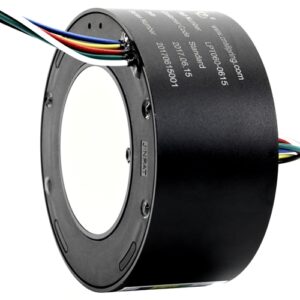

LPT060 Through bore slip ring
Through-bore slip ring Ø60 mm, 24 circuits, 1–15 A, IP54
Through-bore slip ring Ø60 mm, 24 circuits, 1–15 A, IP54
-
LPT070 Through bore slip ring
Through-bore slip ring Ø70 mm, 24 circuits, 2–15 A, IP54
Through-bore slip ring Ø70 mm, 24 circuits, 2–15 A, IP54
-
LPT080 Through bore slip ring
Through-bore slip ring Ø80 mm, 24 circuits, 2–15 A, IP54
Through-bore slip ring Ø80 mm, 24 circuits, 2–15 A, IP54
-
LPT096 Through bore slip ring
Through-bore slip ring Ø96 mm, 24 circuits, 1–15 A, IP54
Through-bore slip ring Ø96 mm, 24 circuits, 1–15 A, IP54
-
LPT150-0410-1502 Through bore slip ring
Through-bore slip ring Ø150 mm, 19 × 10 A, stainless steel
Through-bore slip ring Ø150 mm, 19 × 10 A, stainless steel
-

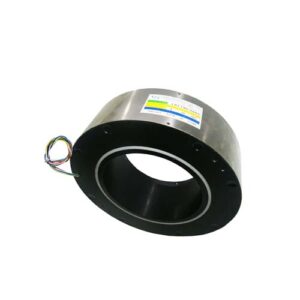

LPT190 Through bore slip ring
Through-bore slip ring Ø190 mm, 24 circuits, 2–15 A, IP54
Through-bore slip ring Ø190 mm, 24 circuits, 2–15 A, IP54
-
LPT200-0430-0210-06S Through bore slip ring
Through-bore slip ring Ø330 mm, 12 × 10–30 A, IP67, CANBUS
Through-bore slip ring Ø330 mm, 12 × 10–30 A, IP67, CANBUS
-
LPTS000-000-0330-1105-SY25 slip ring
Through-bore slip ring Ø195 mm, 3 × 30 A + 9 × CANBUS, IP67
Through-bore slip ring Ø195 mm, 3 × 30 A + 9 × CANBUS, IP67
-
LPTS000-0330-1105-SY50 slipring
Through-bore slip ring Ø200 mm, 11 × 5–30 A, 2 × CANBUS
Through-bore slip ring Ø200 mm, 11 × 5–30 A, 2 × CANBUS
-

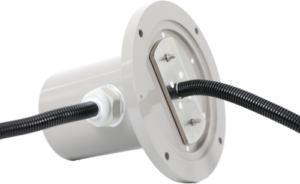

LPTS000-0340-1305 slipring
Through-bore slip ring Ø220 mm, 19 × 5–30 A, IP67
Through-bore slip ring Ø220 mm, 19 × 5–30 A, IP67
-
LPTS000-0350-1605 slipring
Through-bore slip ring Ø220 mm, 19 × 5–50 A, IP67, CANBUS
Through-bore slip ring Ø220 mm, 19 × 5–50 A, IP67, CANBUS
-

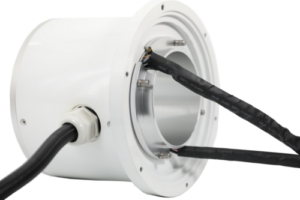

LPTS000-0440-14S Through bore slip ring
Through-bore slip ring Ø260 mm, 18 × 5–40 A, IP67
Through-bore slip ring Ø260 mm, 18 × 5–40 A, IP67
