RF Coax rotary joints

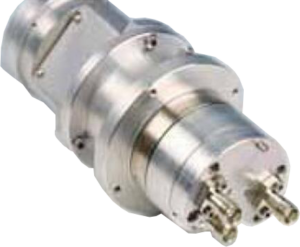

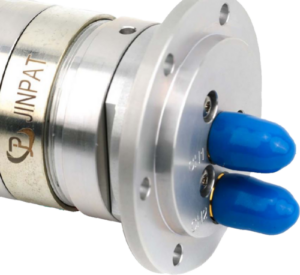

RF coax rotary joints transfer high-frequency signals through a coaxial connection across a rotating interface. SCN supplies coaxial RF rotary joints from JINPAT in the LPHF and LPCC series, with several models in each series. They are used in antenna systems, radar, satellite communication and test equipment where RF signals must pass through continuous rotation. Our engineers help you choose the right frequency range, connector type and number of channels for your application.
