Ethernet slip rings

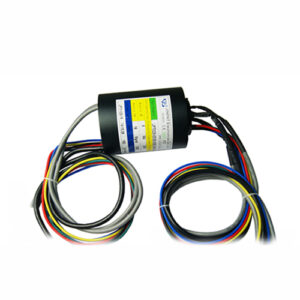

Ethernet slip rings transfer network data across a rotating interface, keeping equipment on the rotating part connected. SCN supplies JINPAT Ethernet slip rings in the LPC, LPM, LPMS and LPT series, from the compact LPM-18C-E3 to LPT models combining Ethernet with power and signals. They are used in industrial robots, rotary tables, cameras and inspection systems. Our engineers help you choose the right channels, circuits, bore size and IP rating for your application.
