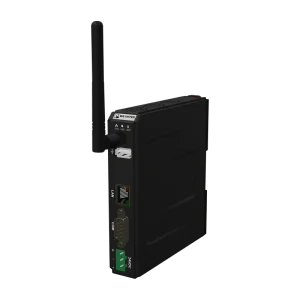

cMT-G01X IIoT-gateway med OPC UA og MQTT
cMT-G01X IIoT-gateway med OPC UA og MQTT
Weintek cMT-G01X er en kompakt IIoT-gateway, der forbinder PLC’er og maskiner med OPC UA, MQTT og cloudsystemer.
OPC UA-server og MQTT til IIoT-data
Modbus TCP/IP-gateway med understøttelse af MPI 187,5K
To 10/100 Ethernet-porte og én USB-værtsport
Tre COM-porte med RS-232 og RS-485
Quad-core CPU, 256 MB flash og 256 MB RAM
Drift fra -20 til 55 °C, indbygget strømisolering
DIN-skinnemontage, PCB-belagt, cULus-listet
Vores guider hjælper dig med at vælge rigtigt.
Industrielle protokoller – PROFINET, EtherNet/IP, ModbusYderligere information
| Sektor | Fabriksautomation |
|---|---|
| IP-klasse | IP20 |
| Montering | DIN-skinne |
| Temperaturområde | -20 °C ~ 55 °C |
| Materiale | Plast |
| Forsyningsspænding | 24 VDC |
| Mål | 27 x 130 x 115 mm |
| Vægt | 0,18 kg |
| LAN-porte | 2 |
| USB-porte | 1 |
| COM-porte | 3 |
| Seriel standard | RS-232, RS-485 |
| Vibrationstolerance | 2 G |
| Godkendelser | UL |
| Hukommelse | 256MB |
| Feltbus/interface | Ethernet, Modbus, MQTT, OPC UA, RS-232, RS-485, USB |
