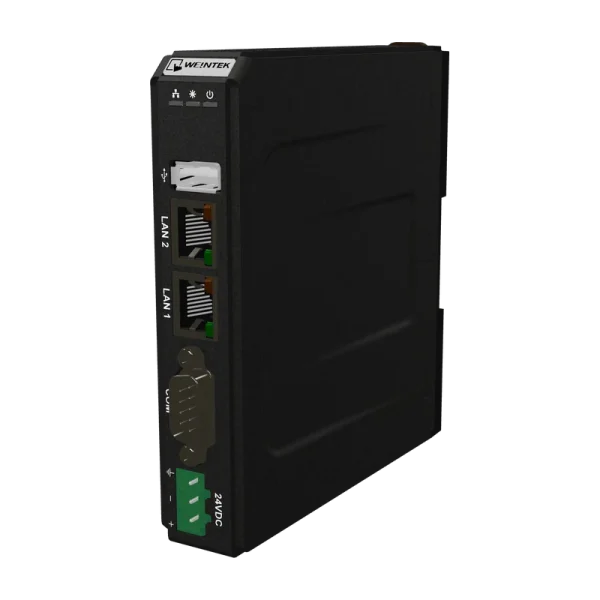

cMT-G01X IIoT gateway with OPC UA and MQTT
cMT-G01X IIoT gateway with OPC UA and MQTT
The Weintek cMT-G01X is a compact IIoT gateway that connects PLCs and machines to OPC UA, MQTT and cloud systems.
OPC UA server and MQTT for IIoT data
Modbus TCP/IP gateway with MPI 187.5K support
Two 10/100 Ethernet ports and one USB host
Three COM ports with RS-232 and RS-485
Quad-core CPU, 256 MB flash and 256 MB RAM
Operates from -20 to 55 °C, built-in power isolator
DIN rail mounting, PCB-coated, cULus listed
Our guides help you choose the right product.
Industrial Ethernet protocols – PROFINET, EtherNet/IP, ModbusAdditional information
| Sector | Factory Automation |
|---|---|
| IP Classification | IP20 |
| Mounting | DIN rail |
| Temperature range | -20°C ~ 55°C |
| Material | Plastic |
| Supply voltage | 24 VDC |
| Dimensions | 27 x 130 x 115 mm |
| Weight | 0,18 kg |
| LAN ports | 2 |
| USB ports | 1 |
| COM ports | 3 |
| Serial standard | RS-232, RS-485 |
| Vibration | 2 G |
| Approvals | UL |
| Memory | 256MB |
| Fieldbus/Interface | Ethernet, Modbus, MQTT, OPC UA, RS-232, RS-485, USB |
