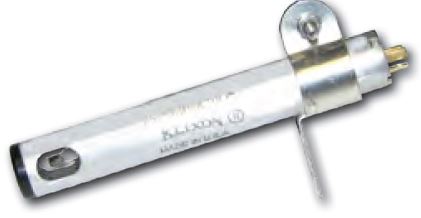

The Klixon 2SE from Sensata is a solid-state air flow switch designed to monitor and protect against loss of air flow in electronic equipment, such as power supplies and data processing units.

– Type: Solid-state air flow switch
– Configuration: SPST or DPST; normally open or closed
– Reset: Automatic or manual
– Max. voltage: 30 VDC
– Max. current capacity: 400 mA
– Life: Up to 100,000 cycles
– Temperature range: Operating: 10°C to 50°C; ambient: up to 150°C
– Vibration resistance: 10G, 10–500 Hz according to MIL-STD-202, Method 202, Condition A
– Shock resistance: 100G for 6 ms according to MIL-STD-202, Method 213, Condition C
– Weight: Approximately 20 grams

Applications: Aviation, defense, and industrial applications where reliable airflow monitoring is critical
