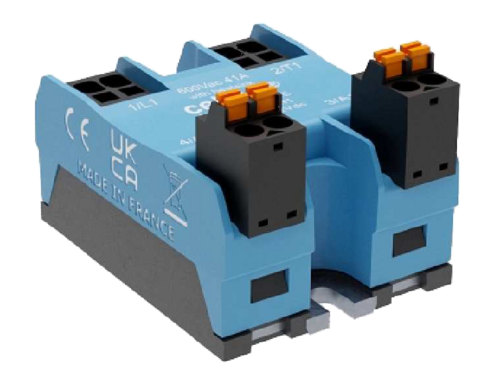

SOR965440-HE Single phase Power Solid State Relay 41A with ”push-in” terminals
SOR965440-HE Single phase Power Solid State Relay 41A with ”push-in” terminals
Zero Cross Solid State Relay especially designed for resistive loads (AC-1).
Back to back thyristors on output with TMS2 (*) technology with a long lifetime expectancy : 24 to 600VAC max 60A. Current limited by the connectors at 41A.
Overvoltage protection at the output by self turn ON of the thyristors (TVS diodes on gates).
Large control range: 3.5-32VDC with input current limiter.
Green LED visualization on the input.
Input overvoltage protection.
Double ”push-in” spring power terminals (max. 6mm²).
Double ”push-in” pluggable spring control terminals (max. 2.5mm²).
Designed in conformity with IEC/ EN60947-4-3; IEC 60335-1/ VDE0700-1; IEC 62314.
Lisätiedot
| Control voltage | 3,5-32VDC |
|---|---|
| Current | 40A |
| Max current | 60A |
| Max system voltage | 24-600VAC |
| Phase | Single phase |
| Electrical connection | Push-In quick connect |
| Sector | Factory Automation |
