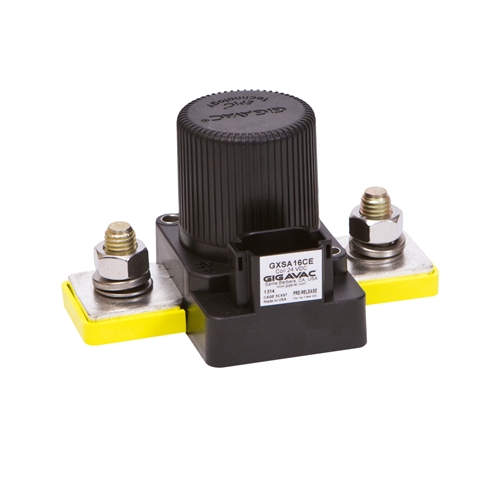

GXSA16 over current contactor
GXSA16 over current contactor
When the trip limit is exceeded the contacts will open and the Trip indicator line will go low. The TRIP pin is an open drain. After a trip, V-control needs to be brought low to reset the contactor.
Current trip setting range ±20-600Amp.
The contactor’s operating coil, and if an auxilary contact is selected too, it needs to be connected with Deutch connector 0857.
Need to be ordered separately and more information is available here https://scn.fi/fi-components/tehokontaktorit/accessories/0857
Lisätiedot
| Lisätty toiminto | Over current |
|---|---|
| Apukosketin | Normaalisti avoin (NO) |
| Käämin jännite | 12 V DC, 24 V DC |
| Yhteystietojen asetukset | Normaalisti avoin (NO) |
| Tasavirta | 600 A |
| Suurin virta | 3000 A |
| Mekaaniset syklit | 1.000.000 |
| Asennus | Alusta |
| Sektori | Ajoneuvoratkaisut |
