– Miniature size.
– Low weight.
– "Trip-free"—they cannot be forced to connect once they have tripped until the circuit is safe again.
– Current ratings (0.5 to 20 amps).
– High vibration resistance.
– Options: dust cover (part #14500-1 fits 15/32 bushing, part.
#14500-5 fits 7/16 bushing), auxiliary switch, terminal bracket, longer push button.

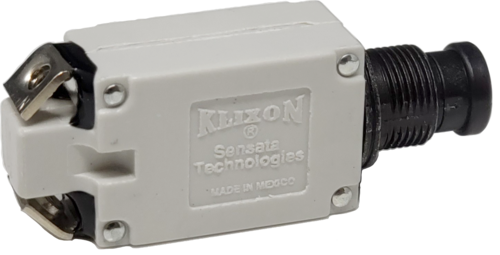

The Klixon® 7277 series is designed for applications that do not require the more stringent performance characteristics and approvals of our military switches.
Originally developed as an alternative to slow-blow fuses, the trip-free 7277 is widely used as primary electrical circuit protection in general aviation aircraft.
| Acceleration | 10G |
|---|---|
| Approvals | Yes |
| Current | 0,5A, 0,75A, 1,5A, 10A, 1A, 2,5A, 20A, 2A, 3A, 4A, 5A, 7,5A |
| Mechanical shock | 30G |
| MIL approval | No |
| Phase | Single phase |
| Mounting | Neck mounting |
| Temperature compensated | No |
| Sector | Defence |
