– Uses minimal space.
– Low weight.
– Trip-free.
– Qualified according to MIL-C-5809.
– Current rating: 0.5A to 20A.
– Low amperage.
– High vibration resistance.
– Options: Long push button, dust cover (part #14500-1 fits 15/32 bushing, part #14500-5 fits 7/16 bushing), extra switch, waterproof panel seal.
– Typical use: Protection of wiring in military airborne vehicles and equipment.

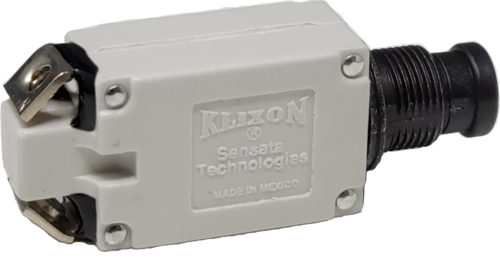

The Klixon® 7274 series are small, lightweight, low-current devices specifically designed to protect cables and components in the aerospace industry in airborne vehicles and equipment.
| Acceleration | 10G |
|---|---|
| Approvals | Yes |
| Current | 0,5A, 0,75A, 1,5A, 10A, 1A, 2,5A, 20A, 2A, 3A, 4A, 5A, 7,5A |
| Mechanical shock | 30G |
| MIL approval | Yes |
| Phase | Single phase |
| Voltage | 120VAC 400Hz, 30VDC |
| Mounting | Neck mounting |
| Temperature compensated | No |
| Sector | Defence |
