SIM100 MLP Active Insulation Monitoring Device
SIM100 MLP Active Insulation Monitoring Device

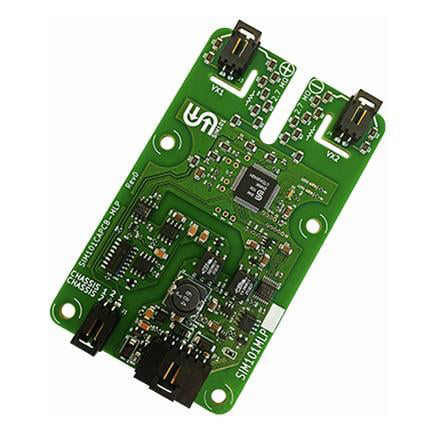

The Sensata SIM100 MLP is an active insulation monitoring device for high-voltage EV and HEV batteries, operating even with the battery disconnected.
Continuously monitors isolation resistance between IT system and chassis
Detects resistive leakage and capacitively stored energy
Measuring range -1100 V to +1100 V, accuracy ±5%
Initialises in under 6 s, detects changes within 5 s
CAN interface and 5–30 VDC supply voltage
Temperature range -40 °C to +125 °C
Reports isolation resistance in Ω/V per ISO6469-1 and FMVSS §571.305
Additional information
| Fieldbus/Interface | CAN, CANBUS |
|---|---|
| Temperature range | -40°C ~ 125°C |
| Supply voltage | 5–30 VDC |
| Sector | Defence |
| Accuracy | ±5% |
| Measured variable | Insulation resistance |
| Measuring range | -1100-1100V, 0-2,727MΩ |
| Dimensions | 60 x 101,6 x 10,8 mm |
