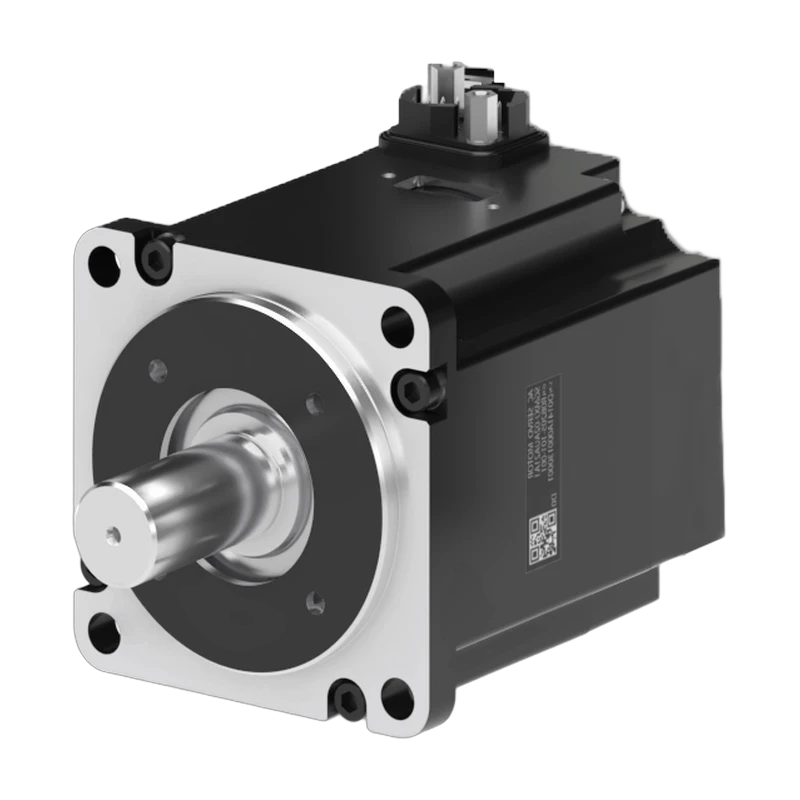

SGMXA Sigma-X Servo Motor
SGMXA Sigma-X Servo Motor
The Yaskawa SGMXA is a Sigma-X rotary servo motor for general-purpose automation, combining high speed with a 26-bit absolute encoder.
Rated output from 50 W to 5 kW
Rated torque from 0.159 to 15.8 Nm
Max speed up to 7000 rpm
26-bit batteryless absolute encoder option
IP67 enclosure, self-cooled
200 V and 400 V versions
Additional information
| Sector | Factory Automation |
|---|---|
| Temperature range | 0°C ~ 40°C |
| Power (kW) | 0,05 kW, 5 kW |
| Torque | 0,159 Nm, 15,8 Nm |
| Max operating speed | 6000 rpm, 7000 rpm |
| IP Classification | IP67 |
| Resolution Singleturn | 26bits |
| Dimensions | 130 x 130 x 334 mm, 40 x 40 x 80,5 mm |
| Weight | 0,3 kg, 19 kg |
| Vibration | 5 G |
| Supply voltage | 200 VAC, 400 VAC |
