Description

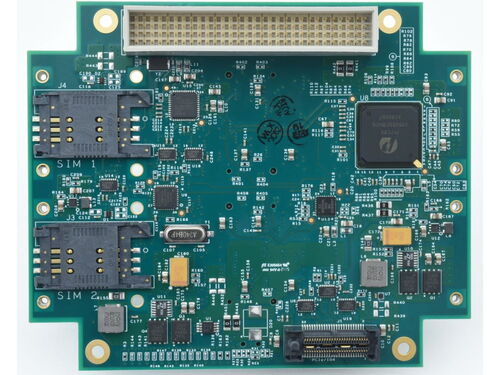

The PCIe MiniCard carrier offers four PCIe MiniCard sockets on a compact PCI/104 Express form factor board. All four sockets have PCIe x 1 and USB interfaces and support full size and half size PCIe MiniCard modules.

The module provides full support to all sockets while consuming only a single lane of host SBC resources. SIM card support is provided for two sockets.

All power is derived from the PCIe/104 connector +5V power tab. The PCI-104 connector provides a pass through connection and is not used by the module.

Rugged Design
Extended temperature capability (-40°C to +85°C) enables the board to operate in environments with extreme temperature swings, such as vehicles or outdoor installations. For further enhanced ruggedness, zero ohm resistors can replace jumpers.
