PC104Board DX3 is an industrial CPU module
PC104Board DX3 is an industrial CPU module

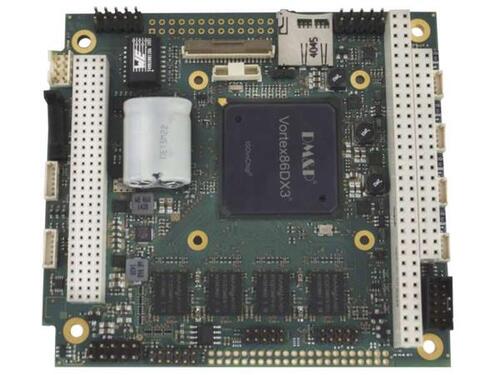

The b-plus PC104Board DX3 is a PC/104-Plus CPU module for rugged embedded systems in automation, energy and infrastructure.
Vortex86DX3 dual-core x86 processor up to 2 × 1 GHz
1 or 2 GB soldered DDR3 memory
Fanless, 7 W at 5 VDC, -40 to +70 °C
Native ISA without bridge, plus PCI, PATA, LPT and PS/2
Fast Ethernet, 4 × USB and 2 × COM (RS-232)
Two independent displays via VGA and LVDS, up to 1920×1440
Boots from SATA, two SD cards or PATA
Additional information
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Renewables |
|---|---|
| Temperature range | -40°C ~ 70°C |
| Processor | DM&P Vortex86DX3 |
| Supply voltage | 5 VDC |
| Power consumption | 7 W |
| Fieldbus/Interface | Ethernet, RS-232, USB |
| Serial standard | RS-232 |
| USB ports | 4 |
| LAN ports | 1 |
| COM ports | 2 |
| Operating system | Linux, Windows |
| Display resolution | 1920×1440 |
| Display outputs | 2 |
| Storage | MicroSD |
| Expansion slots | PCI |
| Cooling | Fanless |
| Memory | 1GB, 2GB |
