P3PC012 Laser
P3PC012 Laser

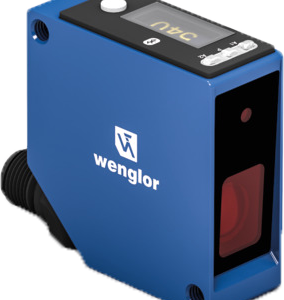

Wenglor P3PC012 is a laser distance sensor measuring 30–80 mm, built for precise distance measurement in automation regardless of material, color or brightness.
Measuring range 30–80 mm, reproducibility 0.8 µm (1 sigma)
Red laser, 655 nm, laser class 1
Analog output 0–10 V plus IO-Link 1.1
Graphical display and wireless setup via Bluetooth
2,500 measurements per second, response under 0.5 ms
Rugged aluminium housing, IP67, M12 5-pin
18–30 V DC supply, -30 to 60 °C
Our guides help you choose the right product.
IP ratings explained – IP65, IP67, IP68 and IP69KPhotoelectric sensor types – how to choose the right oneAdditional information
| IP Classification | IP67 |
|---|---|
| Housing | Cuboid compact |
| Material | Aluminium |
| Measuring range | 30-80mm |
| Communication Interface | Analog 0-10V, Analog 4-20mA, IO-Link |
| Supply voltage | 18–30 VDC |
| Photocell type | High performance distance sensor |
| Sector | Factory Automation |
| Temperature range | -30°C ~ 60°C |
| Electrical connection | M12 connector |
| Response time | 0,5 ms |
| Light type | Laser |
| Approvals | UL |
