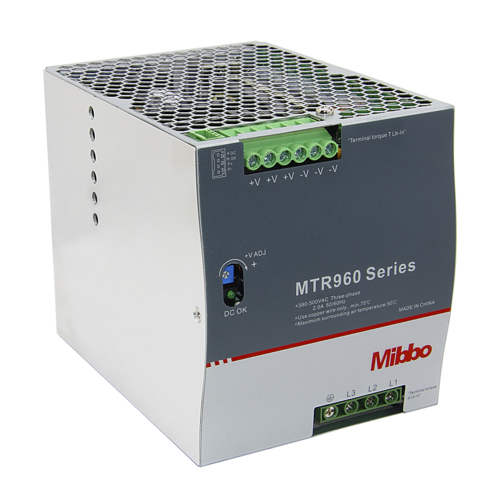

MTR960 – 340 ~ 550V 3-phase
MTR960 – 340 ~ 550V 3-phase
Features:
340 ~ 550V 3-phase wide range input (2-phase input is possible).
Width only 110mm.
Built-in active PFC function compliance to EN61000-3-2.
High efficiency 94.5% and low power dissipation.
Protetions: Short-circuit/Overload/Over voltage/Over temperature.
Cooling by free air convection.
Built-in constant current limiting circuit.
Install on DIN rail TS-35/7.5 or 15.
Paralell installation. Current sharing up to 3840W (3+1).
Built-in DC OK relay contact.
100% full load burn-in test.
3 years warranty.
Applications:
Industrial control system.
Semi-conductor manufacturing equipment.
Factory automation.
Mechanical equipment.
Our guides help you choose the right product.
Industrial power supplies – DIN rail, DC/DC and UPSAdditional information
| Output Voltage | 24 VDC, 48 VDC |
|---|---|
| Rated power | 960W |
| Supply voltage | 340–550 VAC, 480–780 VDC |
| Sector | Factory Automation, Infrastructure & Energy, Renewables |
| Phase | 2-phase, 3-phase |
| Output current | 40 A DC |
| Efficiency | 94 %, 94,5 % |
| Temperature range | -30°C ~ 70°C |
| Mounting | DIN rail |
| MTBF | 647.100 h |
| Weight | 2,47 kg |
| Dimensions | 110 x 125,2 x 150 mm |
| Vibration | 2 G |
| Cooling | Fanless |
