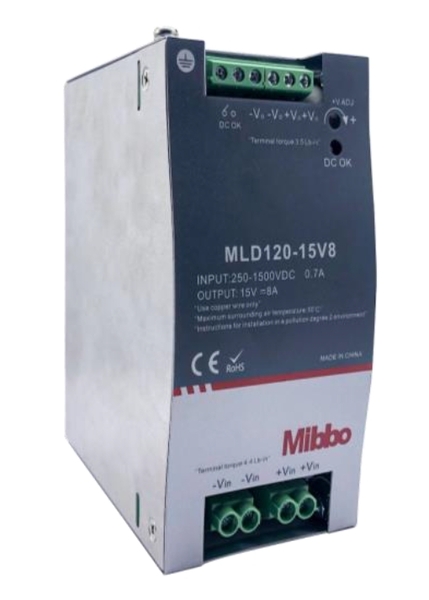

MLD-120-V8 / 250…1500VDC 6:1 ultra wide range input
MLD-120-V8 / 250…1500VDC 6:1 ultra wide range input
250-1500VDC 6:1 ultra wide range input.
Capable of withstanding 1700VDC surge input for 10 seconds.
Ultra-thin width 63MM.
Protection: Over Voltage/Over load/ Over temperature/Short circuit/Reverse polarity protection/Input under Voltage protection.
No fans, natural air cooling.
DIN rail installation: TS-35/7.5 or 15.
-40~+80℃ wide range working temperature (＞+50℃ derating).
over voltage level II.
Highest working altitude 5000m.
DC OK relay control.
Output voltage (DC) adjustable.
Our guides help you choose the right product.
Industrial power supplies – DIN rail, DC/DC and UPSAdditional information
| Output Voltage | 12 VDC, 15 VDC, 24 VDC, 48 VDC |
|---|---|
| Rated power | 120W |
| Supply voltage | 250–1500 VDC |
| Sector | Factory Automation, Infrastructure & Energy, Renewables |
| Output current | 8,4 A DC |
| Efficiency | 91 % |
| Temperature range | -40°C ~ 80°C |
| Mounting | DIN rail |
| Dimensions | 63 x 125,2 x 115 mm |
| Weight | 0,845 kg |
| MTBF | 257.200 h |
| Vibration | 2 G |
| Cooling | Fanless |
