X30 – X50 square stainless steel push button
X30 – X50 square stainless steel push button

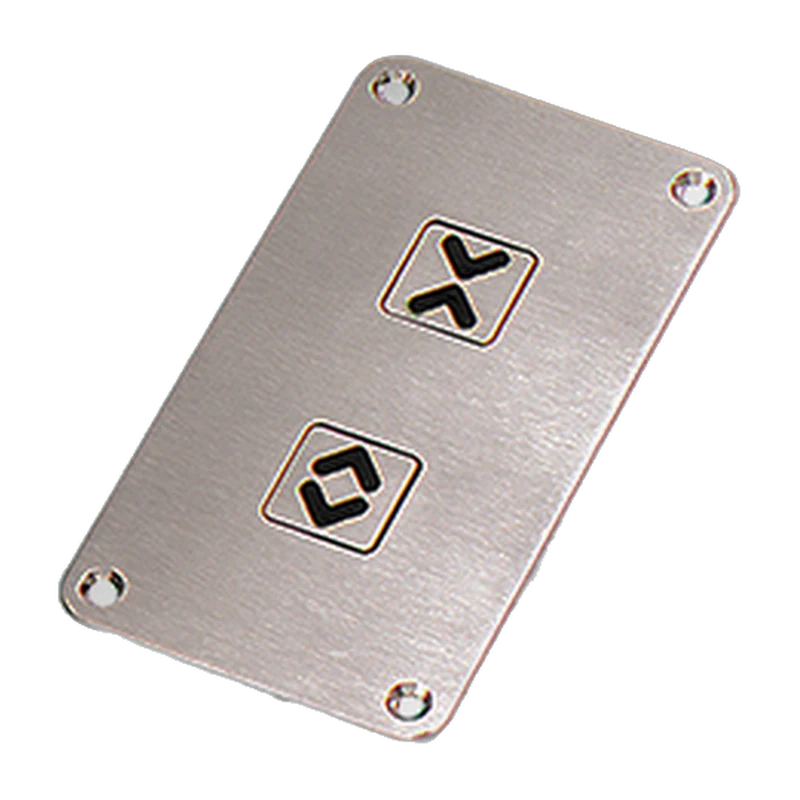

The Mafelec X30 – X50 is a square or rectangular stainless steel push button, optionally illuminated, for rail, industrial and medical control panels.
Sizes 30 x 30, 30 x 50, 50 x 50 mm
Illuminated versions for 24, 72 or 110 V supply
IP65 on front, operates from -25 °C to +70 °C
Polished or brushed stainless steel button
Faston 6,35 mm tab or screw terminal
Flush or proud flange, engraved or lit symbol
1 to 4 NO or NC contacts to IEC 60947-5-1
Additional information
| Sector | Factory Automation, Vehicle Solutions |
|---|---|
| IP Classification | IP65 front |
| Temperature range | -25°C ~ 70°C |
| Supply voltage | 24 VDC, 72 VDC |
| Voltage | 110 VDC, 28 VDC |
| Max current | 2,5 A DC |
| Mechanical cycles | 1.000.000, 20.000.000 |
| Contact config | Normally closed (NC), Normally open (NO) |
| Material | Stainless steel |
| Electrical connection | Faston, Screw terminal |
| Approvals | IEC 60947-5-1 |
| Dimensions | 30 x 30 mm, 30 x 50 mm, 50 x 50 mm |
