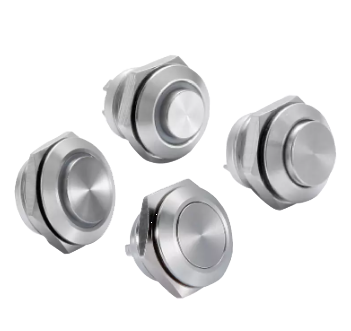

AJ2 Series Ultra short metal button switch
AJ2 Series Ultra short metal button switch
The Mibbo AJ2 is an ultra-short metal push button for control panels and machine fronts in factory automation where low build height matters.
Normally open contact rated 0.3 A DC at 24 VDC
1,000,000 mechanical cycles, -25°C to +55°C operating range
Ultra-short design with a maximum height of 15 mm
IP67 front sealing in a robust metal housing
Short travel stroke for a light, precise press
Sizes include Ø12, Ø16, Ø19, Ø22 and Ø25 mm
Complies with IEC 60947-5 and GB14048
Additional information
| IP Classification | IP67 front |
|---|---|
| Mechanical cycles | 1.000.000 |
| Positions | 1, 2 |
| Temperature range | -25°C ~ 55°C |
| Sector | Factory Automation |
| Voltage | 24 VDC |
| Mounting | Panel |
| Contact config | Normally open (NO) |
| Max current | 0,3 A DC |
| Supply voltage | 12 VDC, 24 VDC, 6 VDC |
