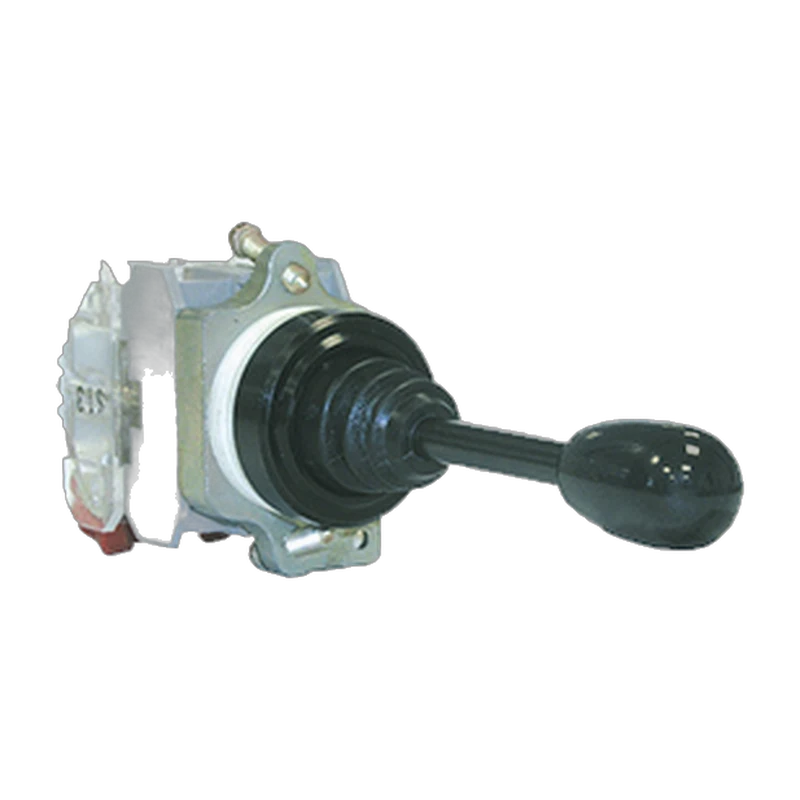

C22 joystick, 1 to 4 directions, Ø 22 mm
C22 joystick, 1 to 4 directions, Ø 22 mm
The Mafelec C22 joystick is a bidirectional auxiliary control with 1 to 4 directions for driver desks, industrial vehicles and machinery, sealed to IP66.
Contact elements rated Ith 20 A, Ui 630 V
1 to 4 directions, 1 or 2 speeds each
Up to 4 NO or NC contacts per direction
IP66 sealing, very low temperature versions
Faston 6,35 mm tab or screw and bracket connection
Ball grip or handle levers, locking versions available
Meets IEC 60947-5-1, EN 61373 and EN 45545
Additional information
| Sector | Defence, Factory Automation, Infrastructure & Energy, Vehicle Solutions |
|---|---|
| IP Classification | IP66 |
| Temperature range | -25°C ~ 70°C |
| Max current | 15 A AC, 15 A DC |
| Voltage | 110 VDC, 400 VAC |
| Mechanical cycles | 1.000.000, 300.000 |
| Positions | 1, 4 |
| Contact config | Normally closed (NC), Normally open (NO) |
| Mounting | Panel |
| Electrical connection | Faston, Screw terminal |
| Approvals | EN 45545, EN 61373, IEC 60947-5-1 |
