WINOX-R Stainless Steel Weight Indicator
WINOX-R Stainless Steel Weight Indicator

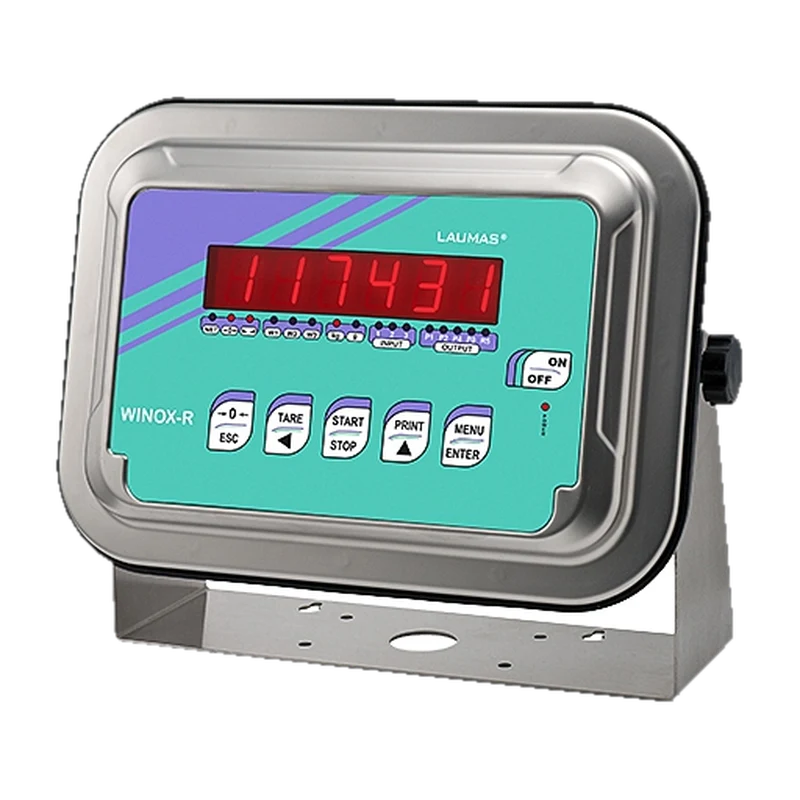

The Laumas WINOX-R stainless steel IP68 weight indicator is built for wet areas with high-pressure cleaning, handling weighing and batching.
AISI 304 stainless steel, IP68, IP69K on request
OIML R76 class III and OIML R61 MID approved
20 mm red LED display and 6-key keypad
RS232, RS485 and optional Profinet, Profibus, CANopen
3 PNP inputs and 5 relay outputs
WiFi, USB and analog output on request
ATEX/IECEx zone 2-22 X version available
Additional information
| Sector | Factory Automation |
|---|---|
| Material | Stainless steel |
| Electrical connection | cable gland, Screw terminal |
| Supply voltage | 12–24 VDC |
| Approvals | NTEP, OIML R61, OIML R76, UKCA, UL |
| IP Classification | IP68 |
| Temperature range | -20°C ~ 60°C |
| Fieldbus/Interface | CANopen, DeviceNET, Ethernet, Ethernet/IP, Modbus, Profibus, Profinet, RS-232, RS-485, USB |
| Mounting | Panel, Wall |
| Load cell type | Weight indicator |
| Digital inputs | 3 |
| Digital outputs | 5 |
| Analog outputs | 1 |
| Dimensions | 286 x 206 x 108 mm |
| Power consumption | 6 W |
