HVBD4 Battery Disconnect Switch 400A/1500VDC
HVBD4 Battery Disconnect Switch 400A/1500VDC

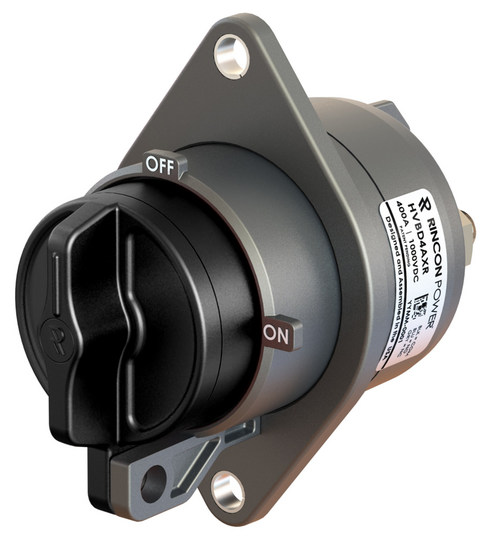

The Rincon Power HVBD4 is a 400 A/1500 VDC battery disconnect switch for electric vehicles, battery systems and energy storage installations.
Rated 400 A DC at up to 1500 VDC
Strong dielectric strength and low contact resistance over life
Hermetic metal-ceramic seal, IP67 and IP69 rated
Operating range -55 to 85 °C for harsh environments
Flange mounting, drop-in replacement for GIGAVAC HBD Series
Standard SPST version, also available with auxiliary contact
Prepared for OSHA lock-out/tag-out procedures
Additional information
| Auxiliary contact | None |
|---|---|
| IP Classification | Hermetic, IP67, IP69 |
| Max current | 400 A DC |
| Max system voltage | 1500 VDC |
| Sector | Vehicle Solutions |
| Contact config | SPST |
| Temperature range | -55°C ~ 85°C |
| Shock | 25 G |
| Vibration | 20 G |
| Weight | 425 g |
| Material | Plastic |
| Mounting | Flange |
