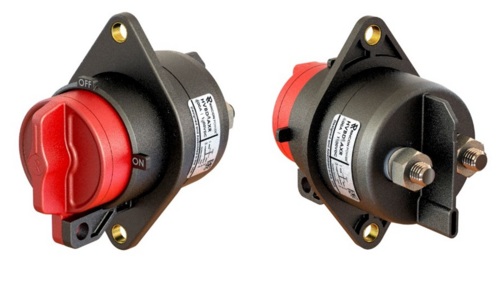

HVBD8 800A/1500VDC with or without integrated auxiliary contact
HVBD8 800A/1500VDC with or without integrated auxiliary contact
High Voltage 1500VDC
High Continuous Current 800A
Robust metal-ceramic hermetic seal.
Industry leading dielectric performance.
High temperature performance.
Low contact resistance over life.
Ready for harsh environments.
Lock-out/tag-out ready for OSHA compliance.
Drop-in replacement for GIGAVAC HBD Series.
Optional integrated auxiliary contacts.
Optinal Integrated auxilary contacts (HVBD8AAR or HVBD8AAB).
Additional information
| IP Classification | Hermetic, IP67, IP69 |
|---|---|
| Max current | 400 A DC |
| Max system voltage | 1500 VDC |
| Sector | Vehicle Solutions |
| Contact config | SPST |
| Continuous current | 800 A DC |
| Temperature range | -55°C ~ 85°C |
| Mounting | Flange |
| Shock | 25 G |
| Vibration | 20 G |
| Weight | 425 g |
| Material | Plastic |
| Auxiliary contact | Changeover (SPDT), Optional |
