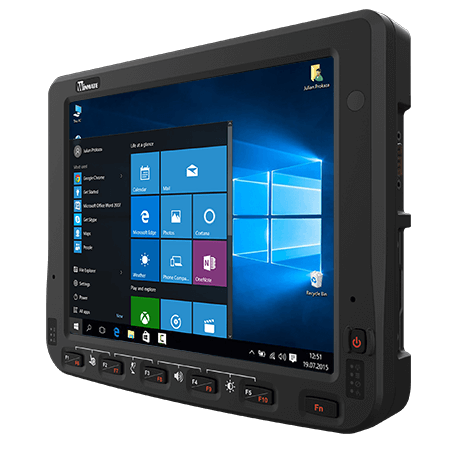

FM10E-V – 10.4inch Windows Vehicle Mounted Terminal
FM10E-V – 10.4inch Windows Vehicle Mounted Terminal
The FM10E-V is a 10.4″ Windows vehicle mounted terminal for fleet, logistics and industrial vehicles that need a sealed, fanless computer.
Intel Atom x6413E/x6425E (Elkhart Lake), 4 GB RAM, max 8 GB
10.4″ 1024×768 PCAP touchscreen, 400 or 800 nits
IP65 sealed and fanless, -30 to 60 °C operation
Wide 10–60 V DC input with ignition control
CAN, RS-232/422/485, 2 DI/2 DO, Ethernet and 4G
VESA mount, MIL-STD-810H, FCC and CE
Additional information
| IP Classification | IP65 |
|---|---|
| Operating system | Windows |
| Screen size | 10'' |
| Temperature range | -30°C ~ 50°C |
| Sector | Vehicle Solutions |
| Display resolution | 1024×768 |
| Brightness (nits) | 400 nits, 800 nits |
| Touch | Capacitive |
| Processor | Intel Atom x6425E |
| Storage capacity | 128GB, 256GB |
| Dimensions | 268,1 x 214 x 51 mm |
| Weight | 2,4 kg |
| Mounting | VESA |
| Cooling | Fanless |
| Approvals | MIL-STD-810, UL |
| USB ports | 2 |
| LAN ports | 1 |
| COM ports | 2 |
| Serial standard | RS-232, RS-422, RS-485 |
| Fieldbus/Interface | CAN, Ethernet, RS-232, RS-485, USB |
| Cellular | 4G |
| Max memory | 8GB |
| Storage | M.2 |
| CAN interfaces | 1 |
| Digital inputs | 2 |
| Digital outputs | 2 |
| Memory | 4GB |
