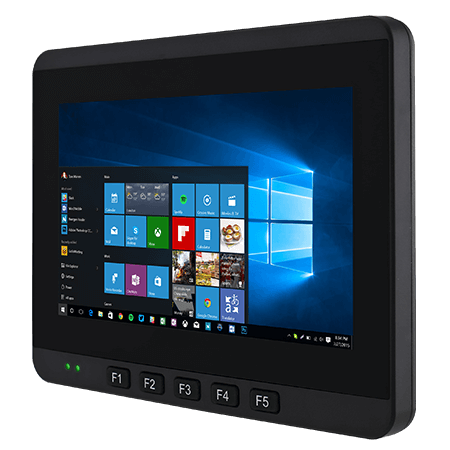

FM07E – 7inch Windows Vehicle Mounted Computer
FM07E – 7inch Windows Vehicle Mounted Computer
The FM07E is a compact 7″ Windows vehicle computer for fleet, logistics and industrial vehicles in harsh conditions.
Intel Atom x6413E (Elkhart Lake), 4 GB RAM, max 16 GB
7″ 1024×600 projected capacitive multi-touch, 1000 nits
IP65 with M12 waterproof connectors, fanless design
Wide 9–36 V DC input with ignition control
2x CAN, 5 DI/3 DO, RS-232, Ethernet, USB and 4G
Shock and vibration tested to MIL-STD-810G
Operating range -20 to 60 °C
Additional information
| IP Classification | IP65 |
|---|---|
| Operating system | Linux, Windows |
| Screen size | 7'' |
| Temperature range | -20°C ~ 60°C |
| Sector | Vehicle Solutions |
| Display resolution | 1024×600 |
| Brightness (nits) | 1000 nits |
| Touch | Capacitive |
| Processor | Intel Celeron N6210 |
| Max memory | 16GB |
| Storage | M.2 |
| Form factor | M.2 2242 |
| Storage capacity | 128GB |
| Dimensions | 190 x 146 x 40 mm |
| Weight | 1,25 kg |
| Cooling | Fanless |
| Shock | 30 G |
| Vibration | 2,18 Grms |
| Supply voltage | 9–36 VDC |
| Approvals | MIL-STD-810 |
| USB ports | 2 |
| LAN ports | 1 |
| COM ports | 1 |
| CAN interfaces | 2 |
| Digital inputs | 5 |
| Digital outputs | 3 |
| Serial standard | RS-232 |
| Fieldbus/Interface | CAN, Ethernet, RS-232, USB |
| Cellular | 4G |
| Memory | 4GB |
