Flexy-205
Flexy-205

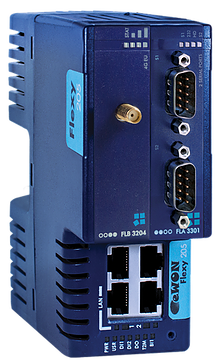

The Ewon Flexy 205 is an industrial IIoT gateway with VPN that lets machine builders collect data, log KPIs and reach machines remotely.
Up to 2500 tags and 1,000,000 logged timestamps
OPC UA, Modbus, EtherNet/IP and major PLC protocols
MQTT, HTTPS and SNMP plus Basic or Java scripting
Four 10/100 Ethernet ports, two DI and one DO
Extension cards for WiFi, 3G, 4G or USB
12–24 VDC, -25 to +60 °C, DIN rail or wall
CE, UL, FCC, IC, RCM, KC and UKCA
Our guides help you choose the right product.
IEC 62443 and NIS2 – cybersecurity for industrial networksAdditional information
| Data logging | Yes |
|---|---|
| Remote access | Yes |
| Web server | Yes |
| Temperature range | -25°C ~ 70°C |
| Sector | Cyber Security, Factory Automation, Infrastructure & Energy, Medical & Life Science, Renewables |
| Supply voltage | 12–24 VDC |
| Mounting | DIN rail, Wall |
| Dimensions | 55 x 133 x 122 mm |
| Weight | 280 g |
| Fieldbus/Interface | Ethernet, Ethernet/IP, Modbus, MQTT, OPC UA, Profibus, RS-232, RS-485, USB |
| Serial standard | RS-232, RS-422, RS-485 |
| LAN ports | 4 |
| Digital inputs | 2 |
| Digital outputs | 1 |
| Cellular | 3G, 4G |
| Wi-Fi standard | Wi-Fi 4 |
| Approvals | UL |
