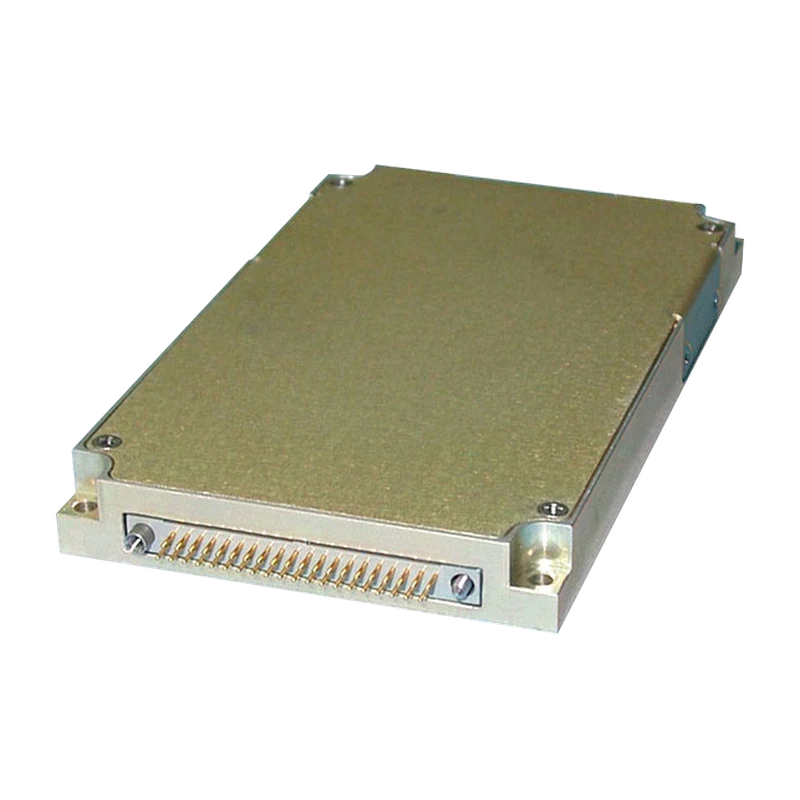

M8767 80 W six-output DC-DC converter
M8767 80 W six-output DC-DC converter
Miniature six-output military DC-DC converter supplying up to 80 W from 18–48 VDC in a 125 g baseplate-mounted package.
18–48 VDC input, up to 80 W total
Six floating outputs, standard 2.5 to 28 VDC
Operates from -55°C to +85°C at the baseplate
TTL inhibit and 250 kHz external sync
Foldback current limit and input over-voltage shutdown
Higher output power available on request
Designed to meet MIL-STD-810D, 461F, 704 and 1275A
Additional information
| Supply voltage | 18–48 VDC |
|---|---|
| Output Voltage | 12 VDC, 15 VDC, 2,5 VDC, 28 VDC, 3.3 VDC, 5 VDC |
| Output current | 0,1 A DC, 3 A DC |
| Rated power | 80W |
| Efficiency | 80 % |
| Approvals | MIL-STD-1275, MIL-STD-461, MIL-STD-704, MIL-STD-810 |
| Temperature range | -55°C ~ 85°C |
| Weight | 125 g |
| MTBF | 150.000 h |
| Sector | Defence |
