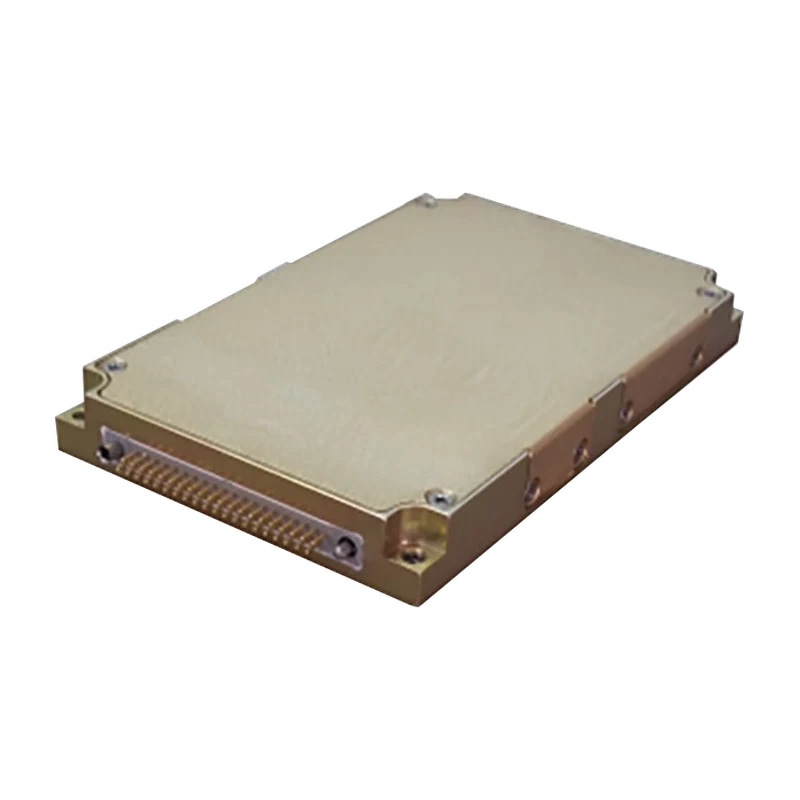

M8747 100 W quad-output DC-DC converter
M8747 100 W quad-output DC-DC converter
Baseplate-cooled quad-output military DC-DC converter delivering up to 100 W from 18–48 VDC with remote sense on the two main outputs.
18–48 VDC input, up to 100 W total
Four outputs, standard 3.3 to 15 VDC
Up to 82% efficiency, up to 15 W/in³
Baseplate cooled, -55°C to +85°C
Input under- and over-voltage lockout
Remote sense on outputs 1 and 2, inhibit and sync
Designed to meet MIL-STD-810F, 461F, 704A and 1275E
Additional information
| Supply voltage | 18–48 VDC |
|---|---|
| Output Voltage | 12 VDC, 15 VDC, 3.3 VDC, 5 VDC |
| Output current | 1 A DC, 12 A DC |
| Rated power | 100W |
| Efficiency | 82 % |
| Approvals | MIL-STD-1275, MIL-STD-461, MIL-STD-704, MIL-STD-810 |
| Temperature range | -55°C ~ 85°C |
| Weight | 170 g |
| MTBF | 150.000 h |
| Shock | 20 G |
| Cooling | Fanless |
| Sector | Defence |
