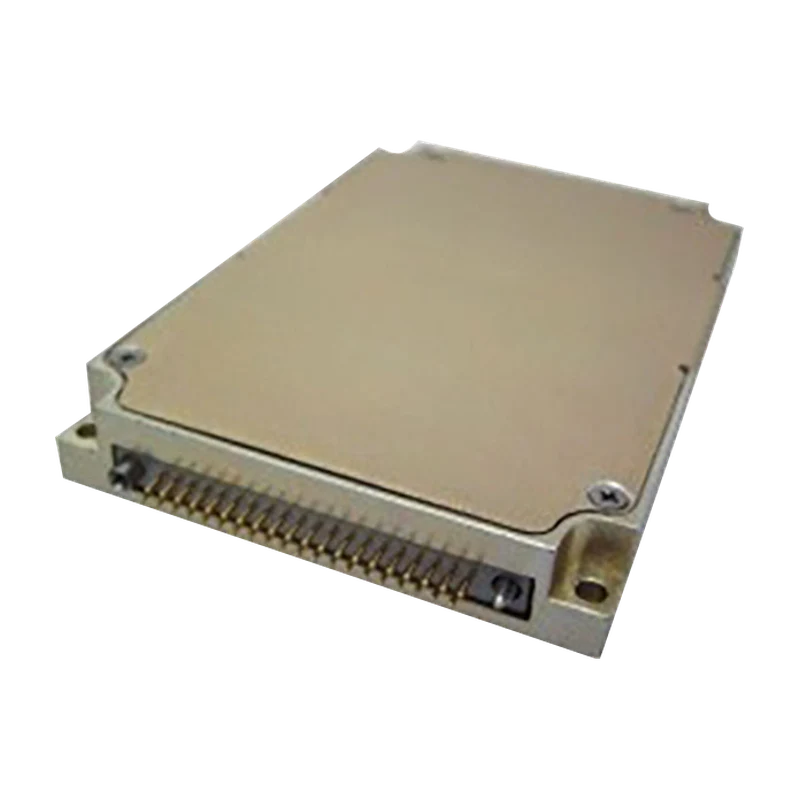

M8727 80 W dual-output DC-DC converter
M8727 80 W dual-output DC-DC converter
Compact baseplate-cooled dual-output military DC-DC converter delivering up to 80 W from 28 VDC systems in ground mobile and airborne equipment.
18–48 VDC input, up to 80 W total
Two outputs adjustable 1.5 to 70 VDC, 40 W each
Standard models from 3.3 to 48 VDC
Up to 82% efficiency, up to 20 W/in³
Baseplate cooled, -55°C to +85°C
Remote sense, inhibit and 250 kHz sync
Designed to meet MIL-STD-810F, 461F, 704 and 1275A
Additional information
| Supply voltage | 18–48 VDC |
|---|---|
| Output Voltage | 12 VDC, 28 VDC, 3.3 VDC, 48 VDC, 5 VDC |
| Output current | 0,8 A DC, 10 A DC |
| Rated power | 80W |
| Efficiency | 82 % |
| Approvals | MIL-STD-1275, MIL-STD-461, MIL-STD-704, MIL-STD-810 |
| Temperature range | -55°C ~ 85°C |
| Dimensions | 66 x 95,3 x 12,7 mm |
| Weight | 180 g |
| MTBF | 150.000 h |
| Cooling | Fanless |
| Sector | Defence |
