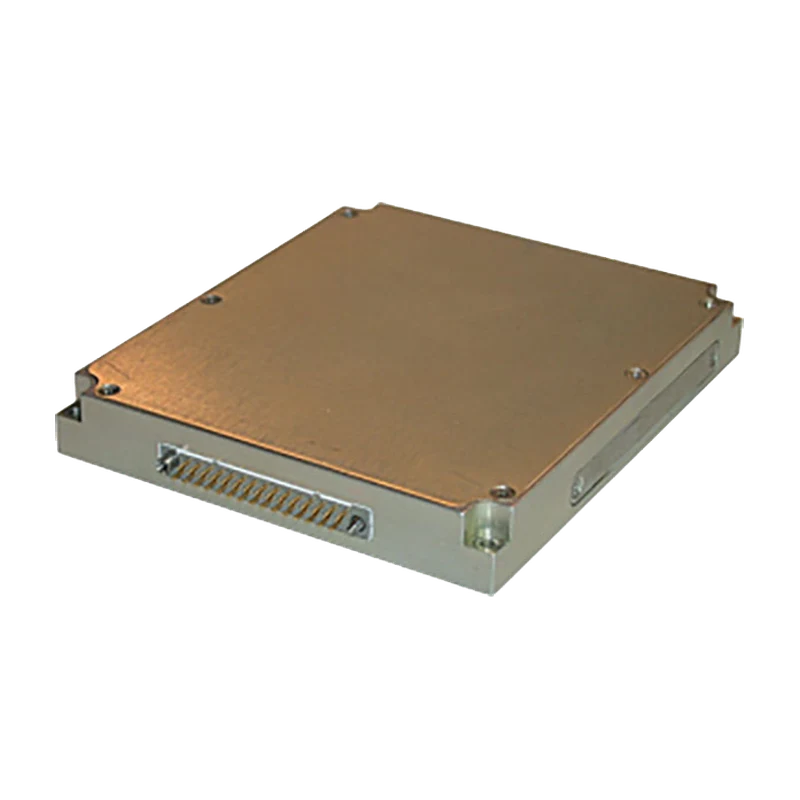

M8647 125 W quad-output DC-DC converter
M8647 125 W quad-output DC-DC converter
Miniature quad-output military DC-DC converter delivering up to 125 W from 18–70 VDC, with a vibration-hardened variant for demanding platforms.
18–70 VDC input, up to 125 W total
Four floating outputs, standard 3.3 to 28 VDC
Operates from -55°C to +85°C at the baseplate
TTL inhibit and 250 kHz external sync
Hiccup current limit, over-voltage and over-temperature shutdown
Vibration-hardened M8647-38 variant available
Designed to meet MIL-STD-810D, 461F, 704 and 1275A
Additional information
| Supply voltage | 18–70 VDC |
|---|---|
| Output Voltage | 12 VDC, 15 VDC, 28 VDC, 3.3 VDC, 5 VDC |
| Output current | 1 A DC, 8 A DC |
| Rated power | 125W |
| Efficiency | 80 % |
| Approvals | MIL-STD-1275, MIL-STD-461, MIL-STD-704, MIL-STD-810 |
| Temperature range | -55°C ~ 85°C |
| MTBF | 150.000 h |
| Sector | Defence |
