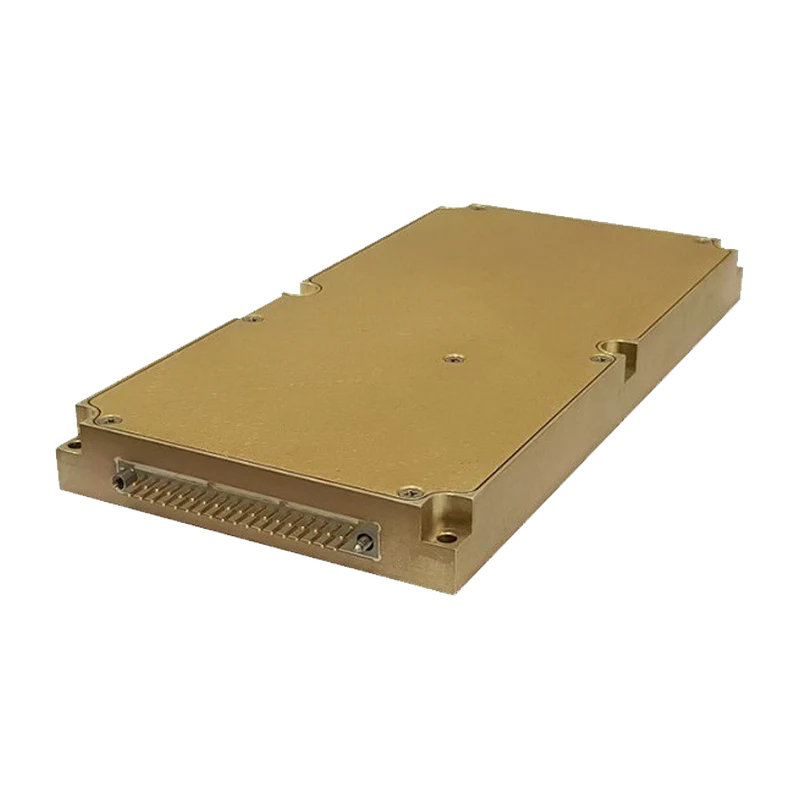

M811 145 W eight-output DC-DC converter
M811 145 W eight-output DC-DC converter
Miniature eight-output military DC-DC converter delivering up to 145 W from 18–70 VDC for airborne, mobile and shipboard electronics.
18–70 VDC input, up to 145 W total
Eight outputs from 1.25 to 28 VDC, one negative
Four galvanically isolated output groups
Operates from -55°C to +85°C at the baseplate
Remote inhibit and external sync at about 250 kHz
Non-latching overload, lockout and over-temperature protection
Designed to meet MIL-STD-810G, 461F, 704A and 1275A
Additional information
| Supply voltage | 18–70 VDC |
|---|---|
| Output Voltage | 1,25–28 VDC |
| Output current | 2,5 A DC, 3 A DC, 4 A DC, 5 A DC, 8 A DC |
| Rated power | 145W |
| Efficiency | 80 % |
| Approvals | MIL-STD-1275, MIL-STD-461, MIL-STD-704, MIL-STD-810 |
| Temperature range | -55°C ~ 85°C |
| Weight | 400 g |
| MTBF | 150.000 h |
| Sector | Defence |
